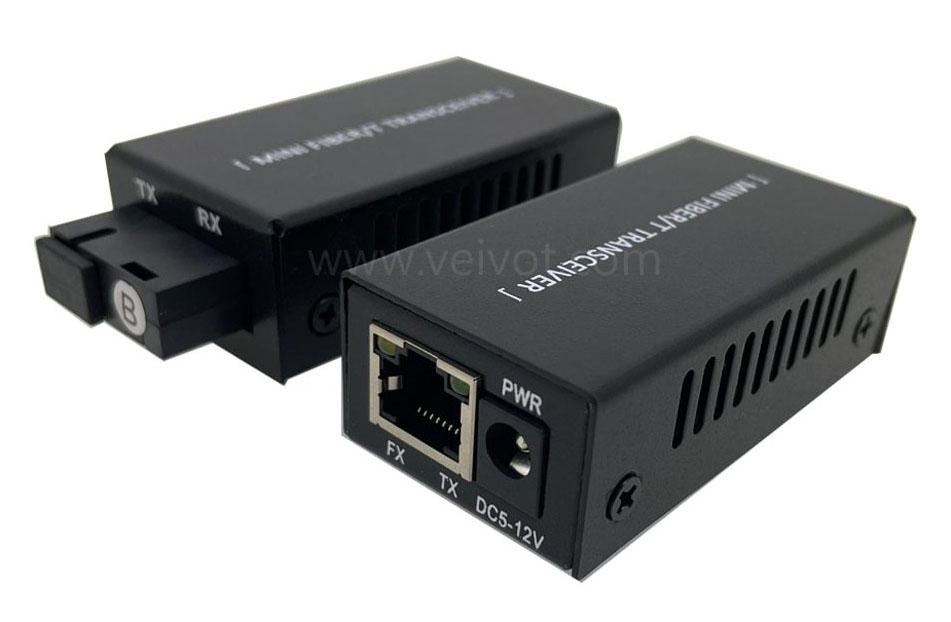

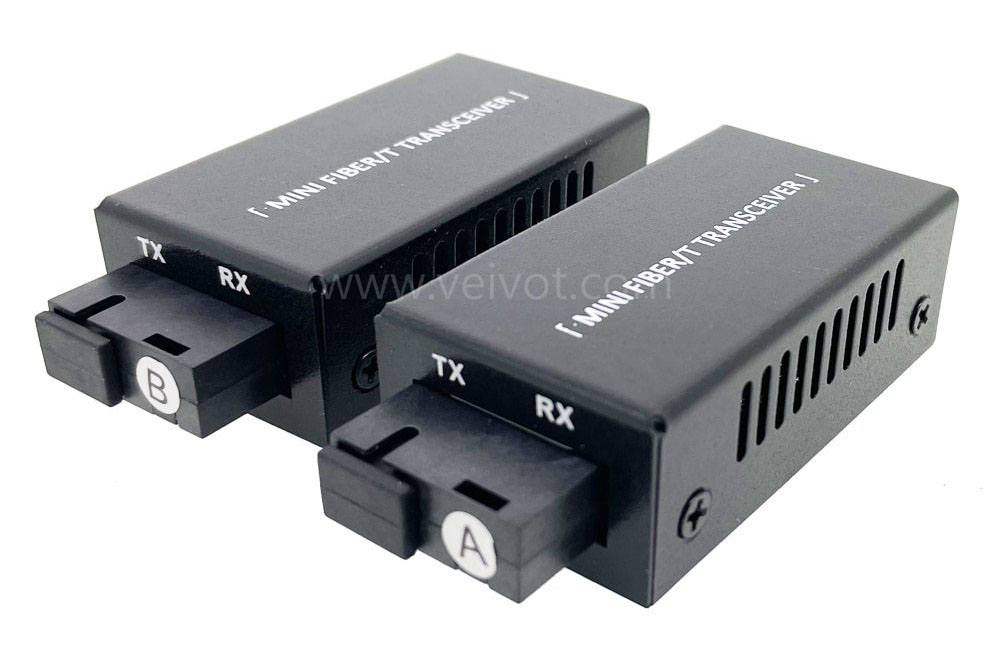

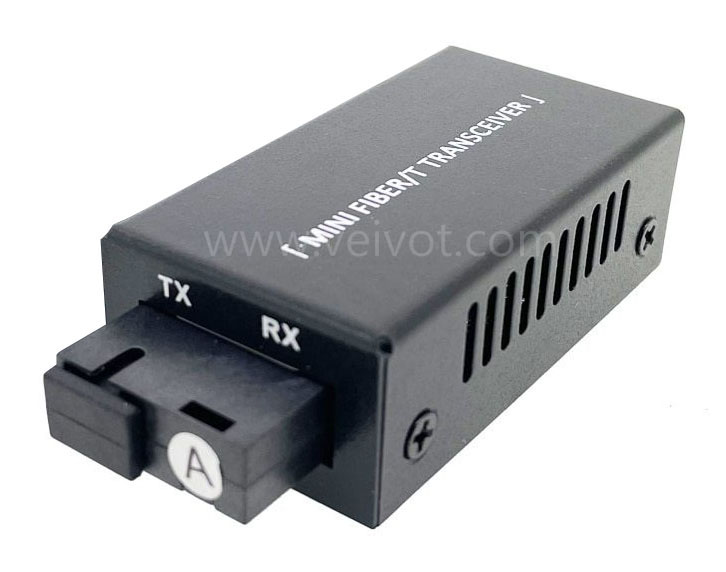

1-Port 10/100BASE-TX RJ45 to 1-Port 100BASE-FX SC SX SM Ethernet Ultra Mini Media Converter
Model No.: VV-M1MC-1SC1E-xxAB
Description
The Media Converter aims to convert 10/100BASE-T 2-port copper to 100BASE-X 1-port optical fiber. The VEIVOT 2-Port RJ45 1-port SC DX SM Gigabit Ultra Small Media Converter (VV-M1MC-1SC1E-xxA/B) features one 100BASE SC Simplex Singlemode optical port and two 10/100BASE RJ45 port. The media converters provide a flexible and cost-effective way to extend the distance of existing copper networks, the lifespan of non fiber optic devices, or the distance between two devices, allowing you to maximize the utilization and performance of traditional devices. Ethernet signals allow three types of network segments to be easily, efficiently, and cheaply connected.
Features
1 port 10/100Mbps-TX RJ45
1 port 100BASE-FX SC SX SM
Ethernet port speed and half/full duplex automatic protocol Auto-Negotiation
Support Auto MDI/MDI-X
SupporT Half/ Full duplex mode
Compatible with virtually any MSA-compliant transceiver
Specification
Model Number | VV-M1MC-1SF1E-xxA/B |
Ethernet protocol | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX |
Ethernet port | 1-port 100/100Mbps RJ45 |
Maximum Ethernet Port Transmission Distance | 100BASE-T: Cat5 100m |
Ethernet Cable Type | UTP Twisted Cable |
Fiber port | 1-port 100BASE SC Simplex Singlemode |
Fiber Type | Singlemode (9/125) Single Fiber |
Wavelength | 1310nm / 1490nm / 1550nm |
Fiber Connector Type | SC/UPC |
Maximum Fiber Port Transmission Distance | 80km (depends on the SC optical transceiver module) |
Maximum Data Transfer Rate | 100Mbps |
Operation Mode | Full / Half duplex Auto-Negotiation |
Store and forward | Support |
Adaptive state | Support 10M/100M photoelectric adaptive |
Application method | Desktop |
Usage environment | Operating temperature: -0℃～+50℃ Storage temperature: -40℃+70℃ Operating Humidity: 10% to 95% (non-condensing) Storage humidity: 5%～90% (non-condensing) |

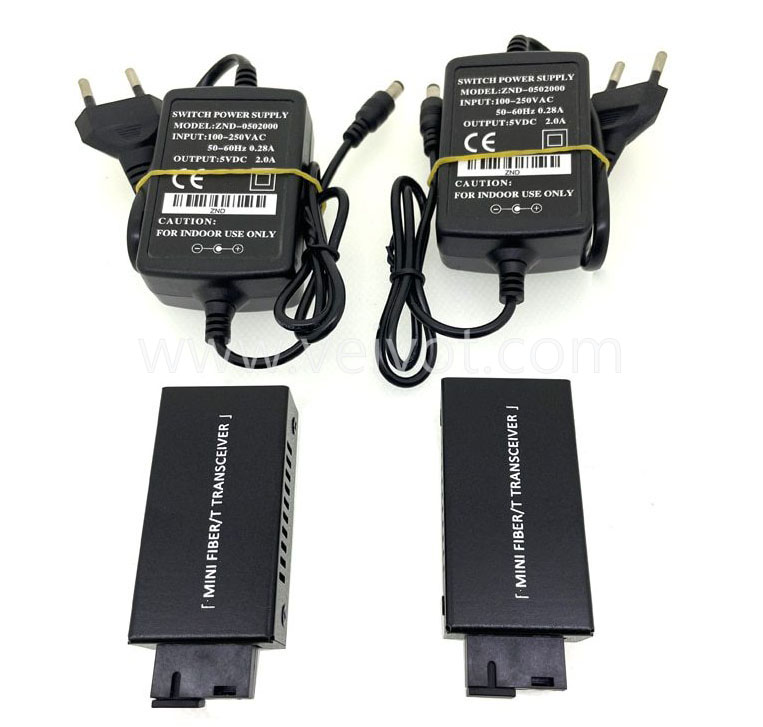

Power Supply | DC: 5V 1A or 5V2A AC: 100-240V 50-60Hz |
Dimension | 69*37*23mm |
Weight | 0.080kg |
RoHS Compliant | Yes |
Workshop
Application
Ordering Information
Part No. | Product Description |
VV-M1MC-1SF1E-3A | 1-Port 10/100Mbps-TX (RJ45) to 1-Port 100Base-FX SC Simplex Singlemode Tx1310nm/Rx1550nm 3KM Ultra Mini Media Converter |
VV-M1MC-1SF1E-3B | 1-Port 10/100Mbps-TX (RJ45) to 1-Port 100Base-FX SC Simplex Singlemode Tx1550nm/Rx1310nm 3KM Ultra Mini Media Converter |
VV-M1MC-1SF1E-20A | 1-Port 10/100Mbps-TX (RJ45) to 1-Port 100Base-FX SC Simplex Singlemode Tx1310nm/Rx1550nm 20KM Ultra Mini Media Converter |
VV-M1MC-1SF1E-20B | 1-Port 10/100Mbps-TX (RJ45) to 1-Port 100Base-FX SC Simplex Singlemode Tx1550nm/Rx1310nm 20KM Ultra Mini Media Converter |
VV-M1MC-1SF1E-40A | 1-Port 10/100Mbps-TX (RJ45) to 1-Port 100Base-FX SC Simplex Singlemode Tx1310nm/Rx1550nm 40KM Ultra Mini Media Converter |
VV-M1MC-1SF1E-40B | 1-Port 10/100Mbps-TX (RJ45) to 1-Port 100Base-FX SC Simplex Singlemode Tx1550nm/Rx1310nm 40KM Ultra Mini Media Converter |
