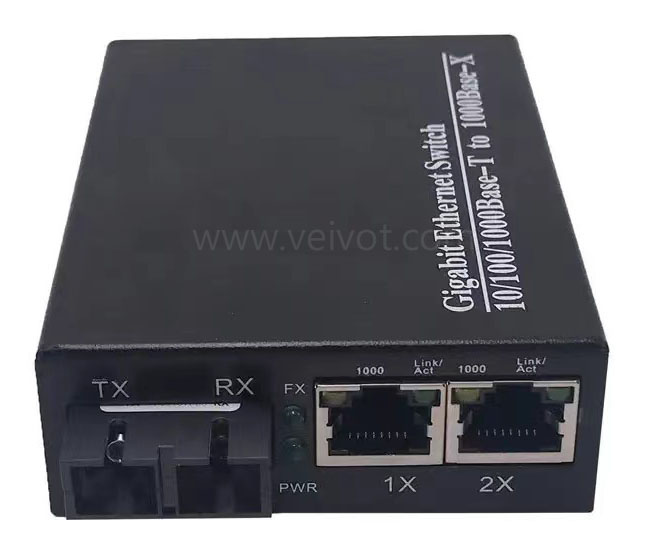

2-Port 10/100/1000Mbps-TX RJ45 to 1-Port 1GBASE-FX SC Duplex Singlemode/Multimode Gigabit Ethernet Media Converter
Model No.: VV-MC1G-1SC2E-xx
Description
The Gigabit Media Converter aims to convert 10/100/1000BASE-T 2-port copper to 1000BASE-X 1-port optical fiber. The VEIVOT 2-Port RJ45 1-port SC DX Gigabit Media Converter (VV-MC1G-1SC2E-xx) features one Gigabit SC Duplex Singlemode/Multimode optical port and two 10/100/1000Mbps RJ45 port. Gigabit media converters provide a flexible and cost-effective way to extend the distance of existing copper networks, the lifespan of non fiber optic devices, or the distance between two devices, allowing you to maximize the utilization and performance of traditional devices. Ethernet signals allow three types of network segments to be easily, efficiently, and cheaply connected.
This product provides an external power supply by default, which can be used as a standalone unit or inserted into the VEIVOT low-cost 14 slot media converter rack chassis (VV-MC14). It allows all the fiber media converters to be powered by a single internal power supply.
Features
2-port 10/100/1000Mbps-TX RJ45
1-port 1GBASE-FX SC DX SM
Ethernet port speed and half/full duplex automatic protocol Auto-Negotiation
Support Auto MDI/MDI-X
SupporT Half/ Full duplex mode
Compatible with virtually any MSA-compliant transceiver
LED indicator monitoring network port status
RoHS compliant
Application
Intelligent Traffic Monitoring System (ITS)
High speed monitoring and remote communication system
Large enterprises, network security monitoring systems, multifunctional systems
Remote multimedia teaching, campus monitoring, remote broadcasting and television transmission system
Specification
Model Number | VV-MC1G-1SC2E-xx |
Ethernet protocol | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX IEEE 802.3z 1000BASE-LX |
Ethernet port | 2-port 100/100/1000Mbps RJ45 |
Maximum Ethernet Port Transmission Distance | 100BASE-T: Cat5 100m 1000BASE-T: Cat5e/Cat6 100m |
Ethernet Cable Type | UTP Twisted Cable |
Fiber port | 1-port 1G SC Duplex Singlemode/Multimode |
Fiber Type | Singlemode (9/125) / Multimode (50/125 and 62.5/125) Dual Fiber |
Wavelength | 850nm / 1310nm / 1490nm / 1550nm |
Fiber Connector Type | SC/UPC |
Maximum Fiber Port Transmission Distance | 80km (depends on the SC optical transceiver module) |
Maximum Data Transfer Rate | 1Gbps |
Operation Mode | Full / Half duplex Auto-Negotiation |
Store and forward | Support |
Adaptive state | Support 10M/100M/1000M photoelectric adaptive |
Application method | Desktop or rack mount |
Usage environment | Operating temperature: 00℃～+50℃ Storage temperature: -40℃+70℃ Operating Humidity: 10% to 95% (non-condensing) Storage humidity: 5%～90% (non-condensing) |

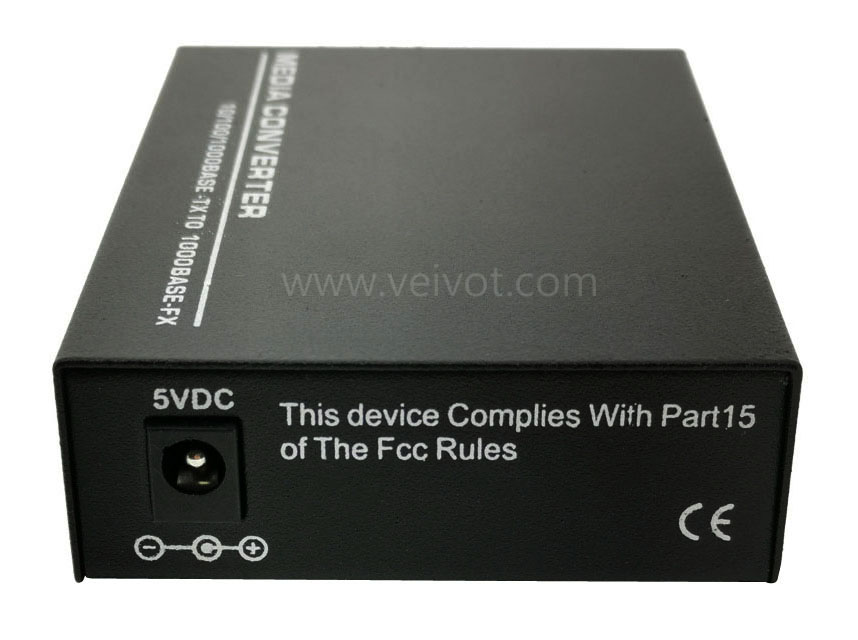

Power Supply | DC: 5V 2A AC: 100-240V 50-60Hz |
Dimension | 94*70*26mm |
Weight | 0.5kg |
RoHS Compliant | Yes |
Ordering Information
Part No. | Product Description |
VV-MC1G-1SC2E-0.55 | 2-Port 10/100/1000Mbps-TX (RJ45) to 1-Port 1GBase-FX SC Duplex Multimode 850nm 3KM Media Converter |
VV-MC1G-1SC2E-2 | 2-Port 10/100/1000Mbps-TX (RJ45) to 1-Port 1GBase-FX SC Duplex Multimode 1310nm 2KM Media Converter |
VV-MC1G-1SC2E-20 | 2-Port 10/100/1000Mbps-TX (RJ45) to 1-Port 1GBase-FX SC Duplex Singlemode 1310nm 20KM Media Converter |
VV-MC1G-1SC2E-40 | 2-Port 10/100/1000Mbps-TX (RJ45) to 1-Port 1GBase-FX SC Duplex Singlemode 1310nm 40KM Media Converter |
VV-MC1G-1SC2E-60 | 2-Port 10/100/1000Mbps-TX (RJ45) to 1-Port 1GBase-FX SC Duplex Singlemode 1550nm 60KM Media Converter |
VV-MC1G-1SC2E-80 | 2-Port 10/100/1000Mbps-TX (RJ45) to 1-Port 1GBase-FX SC Duplex Singlemode 1550nm 80KM Media Converter |
