Description

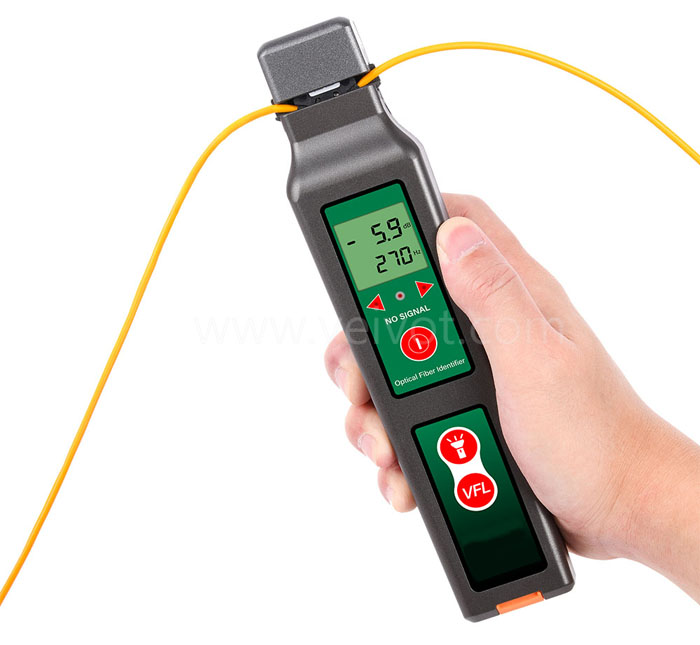

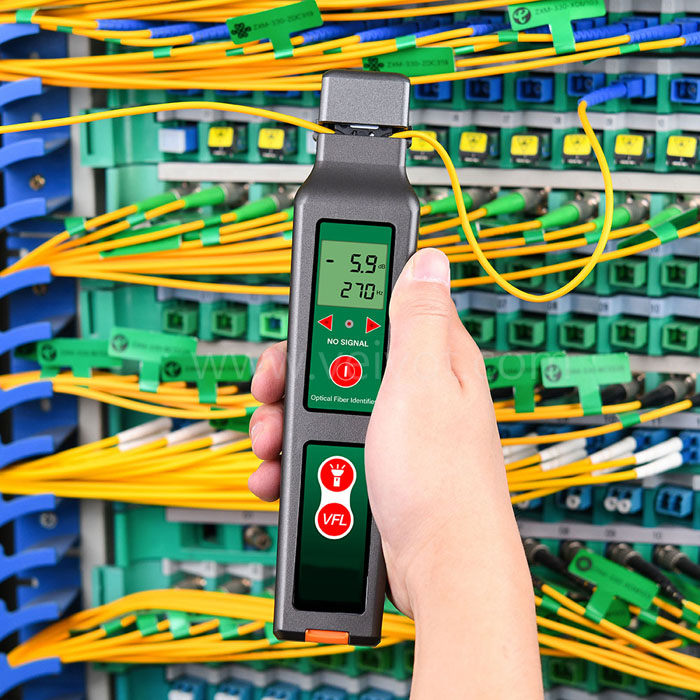

The Optical Fiber Identifier with Visual Fault Locator function can quickly identify the direction of the transmission fiber and display the relative core power without interrupting the current service. Fiber optic recognizers recognize modulation, such as 270Hz, 1KHz, and 2KHz, with continuous audible sounds. There are four types of clamps to choose from: 0.25mm, 0.9mm, 2.0mm, and 3.0mm. This OFI is powered by 2 very ordinary AAA batteries.
Features
VFL included

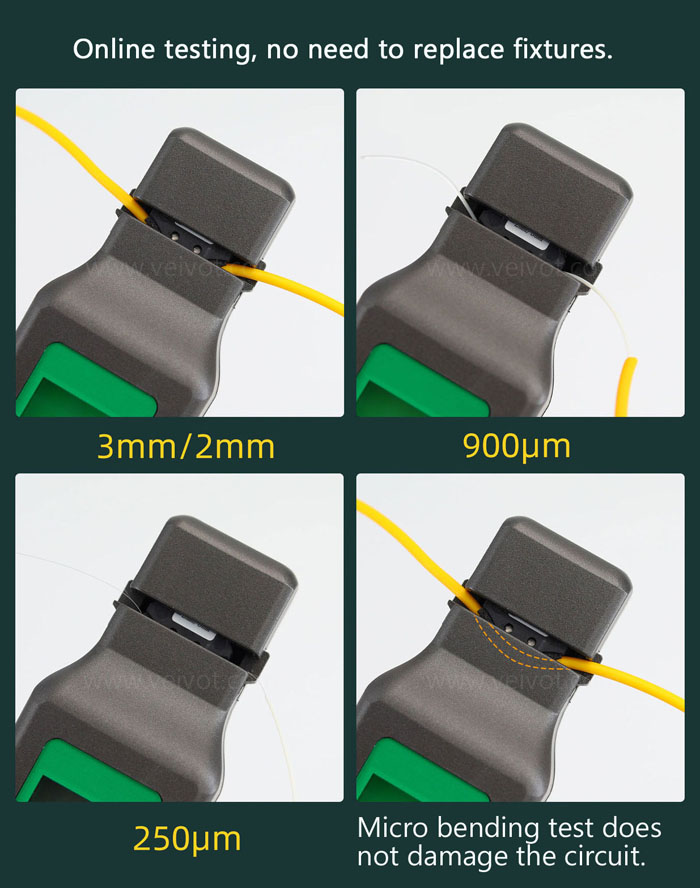

Universal back clip design,suitable for 0.25mm/0.9mm/2.0mm/3.0mm fiber
LED backlight display, suitable for various environment and no auxiliary lighting required
Testing sensitivity -40dBm to 10 dBm
Strong and stable light source, strong penetrating power

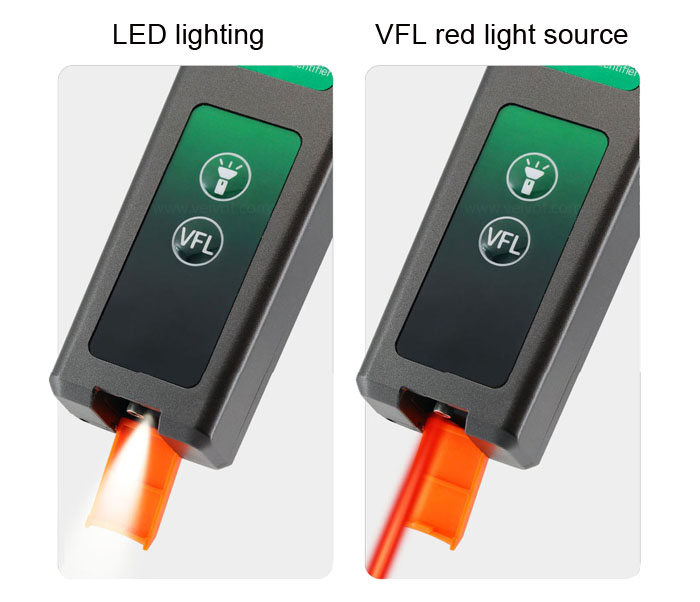

Be equipped with LED light,more convenient to work in the dark
Specification
Model No. | OFIV |
Wavelength detection | 900 ~ 1650nm |
Identified Signal Type | CW, 270Hz±5%, 1kHz±5%,2kHz±5% |
Detector Type | Ø1mm InGaAs 2pcs |
Adapted fiber type | Ø0.25mm, Ø0.9mm, Ø2.0mm, Ø3.0mm |
Signal Direction | Left & Right LED |
Optical Power Reading Range | -40 ~ +10 dBm |
Signal Frequency Range | 270Hz, 1kHz, 2kHz |
Alkaline Battery(V) | 2pcs AAA batteries |
Operating Temperature Range | -10 to 60℃ |
Storage Temperature Range | -25 to 70℃ |
Dimension | 219x45x28mm |
Weight | 235g |
Visual Fault Locator (VFL) function | |
Power range | 1mW |
Testing distance | 3 ~ 5km |
Wavelength range | 650nm |
Laser Type | LD |
Led flashlight | Yes |
