Description

The Veivot LC Uniboot high-density switchable polarity connector is a completely unique design that can increase panel density to the highest level while maintaining good accessibility. The flexible push-pull tab allows the connector to easily engage and detach. This connector has a simple mechanism for switching polarity during installation, making it cost-effective at critical moments. Compared to traditional LC duplex cables, single shell and circular duplex cables can reduce wiring by 50%. Ideal for Data center, SAN, Enterprise/Campus and Telco central office applications.

The unique design uses uniboot to accommodate 2mm or 3mm sheathed cables, reducing cable density and making cable management easier in today's high-density applications.

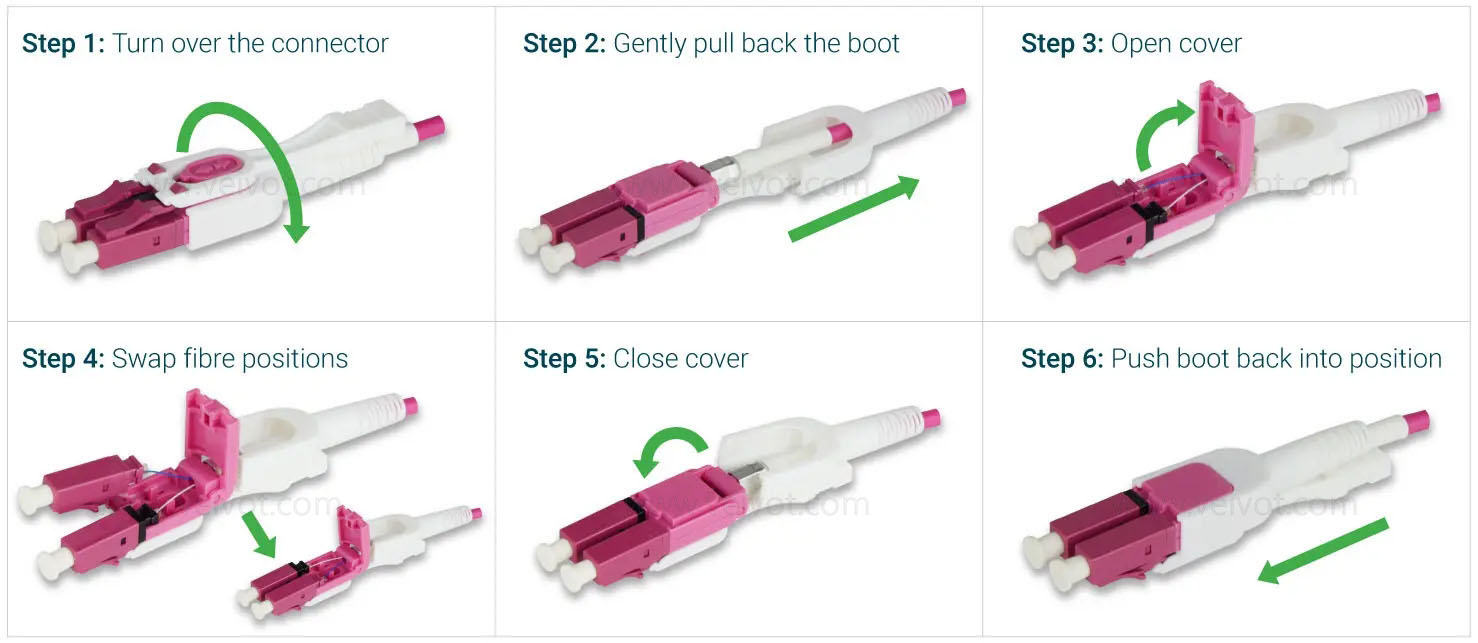

Reverse Polarity

The design of the connector allows users to quickly and easily change polarity between A-B and A-A without tools or professional skills. Polarity can be changed on-site without exposing or damaging the fiber optic, and polarity can be easily switched between A-B and A-A, which means the cable can be used as LC duplex or simplex.

Features

• LC Uniboot connector

• Detachable pull rod

• Detachable connector cover for easy polarity adjustment

• Polarity coding connector for identification

• Enhanced flexibility, perfect for high-density environments


• Compatible with standard duplex LC adapter and feedthrough

• High mechanical strength and superior fatigue performance

• Complies with IEC, EIA-TIA, and Telecommunications requirements

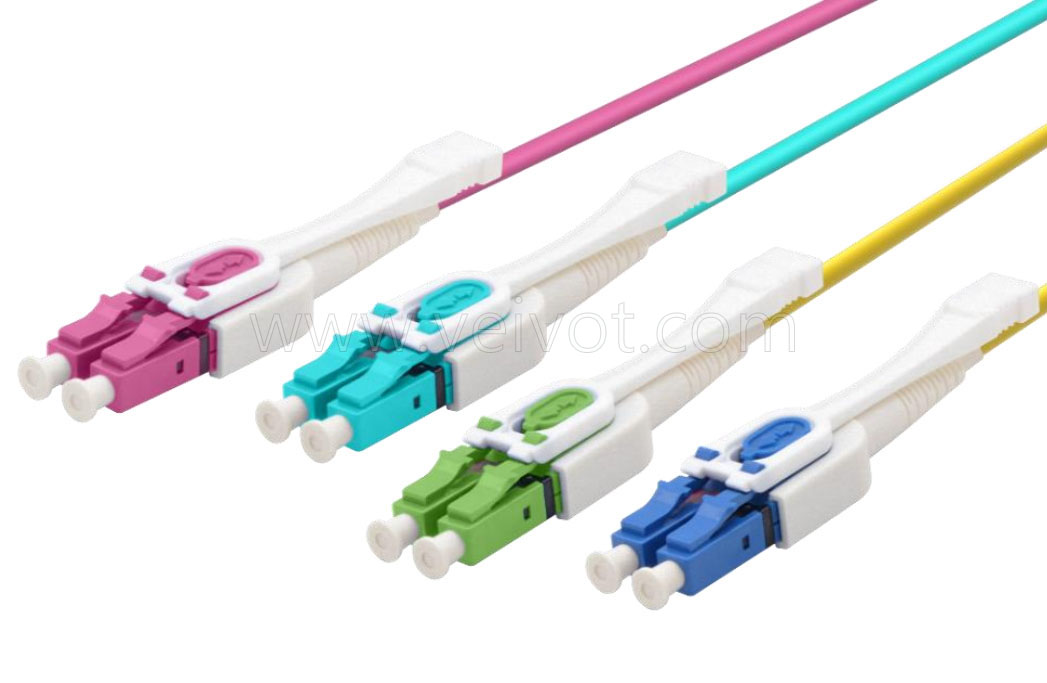

• TIA color encoding

• Complies with Telcordia GR-326-CORE

• Cable outer sehath: Riser rated (OFNR), Plenum rated cable, Low Smoke Zero Halogen (LSZH), Poly Vinyl Chloride (PVC)

Applications

• Data centers

• Telecommunication networks

• FTTx

• Broadband network

Optical fiber transmission distance

Specifications

Packing & Labeling

This easy to take and well-protected fiber optical cable package has been labeled and marked by us as default. Customized and OEM label or package solution are available on request.

Order informaton
