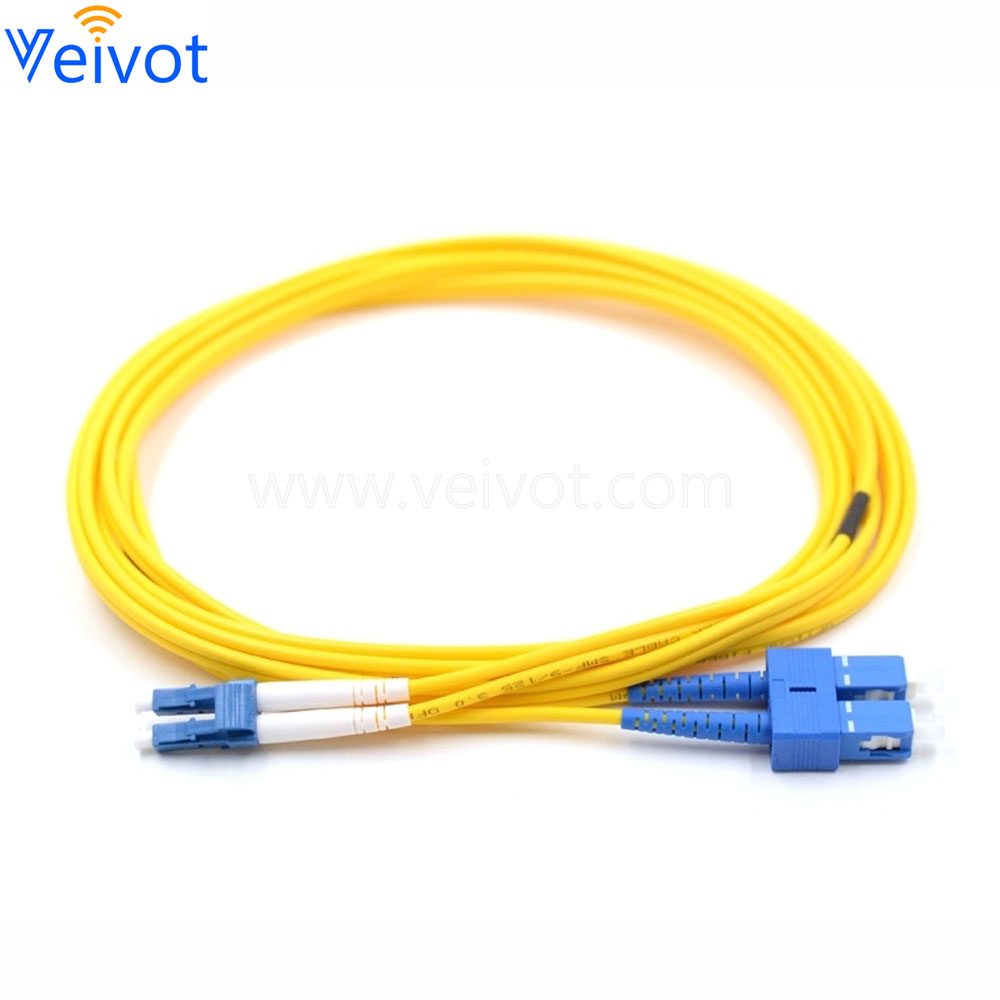

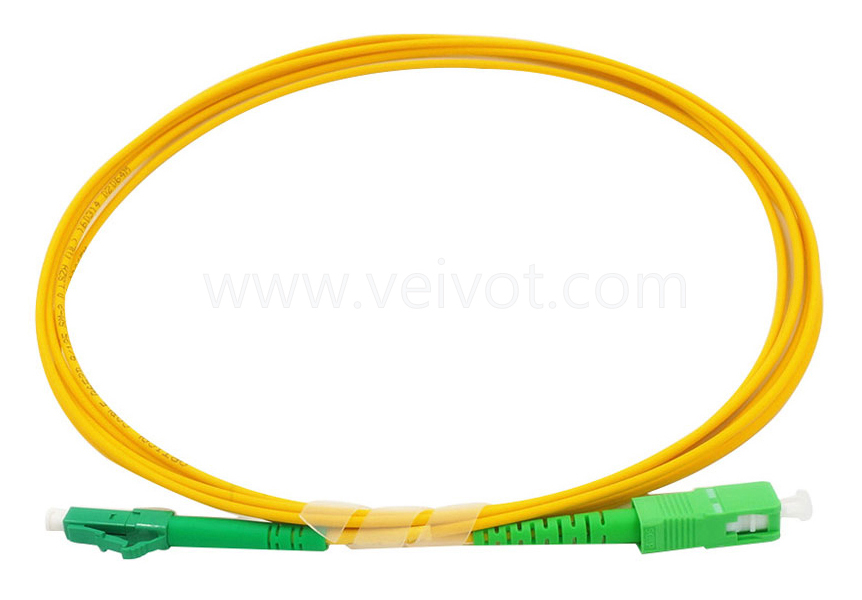

VEIVOT Indoor LC-SC patch cord is used to connect CATV (cable television), telecommunication network, computer optical network and optical fiber test equipment. Applications include communication rooms, fiber to home (FTTH), local area networks (LANs), fiber optic sensors (FOS), fiber optic communication systems, fiber optic connectivity and transmission equipment, and national defense readiness.

The LC (Lucent Connector) type connector has a sleeve structure with a diameter of 1.25mm. The abbreviations PC, UPC, and APC refer to the physical differences in the surface geometry of connectors on ceramic ferrules. UPC (Ultra Physical Contact) indicates that the ceramic ferrule structure on the connector has an additional polished flat structure; APC (Angular Physical Contact) indicates that the ceramic ferrule structure on the connector has an additional polished 8° angle structure.

The SC type connector has a ferrule structure with a diameter of 2.5mm. The abbreviations PC, UPC, and APC refer to the physical differences in the surface geometry of connectors on ceramic ferrules. UPC (Ultra Physical Contact) indicates that the ceramic ferrule structure on the connector has an additional polished flat structure; APC (Angular Physical Contact) indicates that the ceramic ferrule structure on the connector has an additional polished 8° angle structure.

Features

• Low IL and High RL

• Good exchange ability and durability

• High temperature stability

• Standard:Telcordia GR-326-CORE

• Materials meet RoHS requirements

Applications

• CATV

• Telecommunication networks

• Active device termination

• Local area networks(LANS)

• Data processing networks

• Test equipment

• Wide area networks(WANS)




Optical fiber transmission distance

Specifications

Packing & Labeling

This easy to take and well-protected fiber optical cable package has been labeled and marked by us as default. Customized and OEM label or package solution are available on request.

Order informaton
