Description

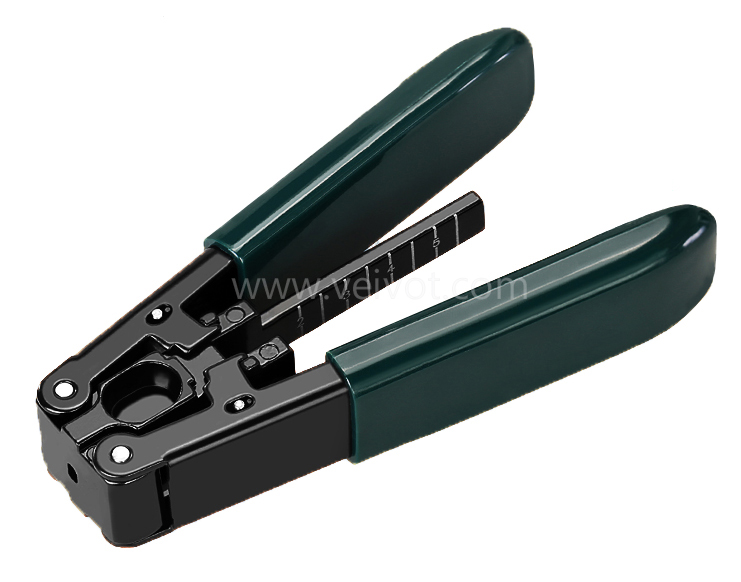

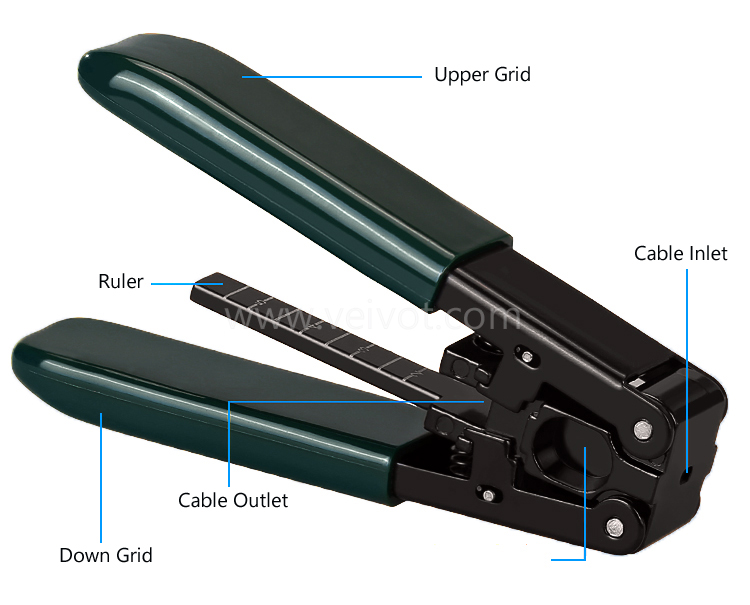

The fiber drop cable stripper is designed for stripping flat fiber drop cable used in Fiber to the Home (FTTH) applications. Tool removes the jacket in two locations to expose the dielectric strength members and allowing quick removal of the fiber cable jacket.
Feature
Soft handle
With length scale
Tool is small and has a lightweight body for ease of use
Easily strips fiber drop cable in 3.1*2.0mm
Also suitable for 2.0mm, 3.0mm indoor fiber optic cable
Blade depth adjustable for protecting the fiber.
2 straight blades in across and 1 round blade in lengthwise
Technical Details
Size | 110*25*20mm |
Applicable Cable | 3*2mm FTTH Flat Drop Cable |
Fiber Diameter | 125um |
Coating Diameter | 250um |
Fiber Amount | 1~2 fibers |
Blade Lifetime | 1,000 times for metal strength member; 2,000 times for nonmetal strength member; |
