Description

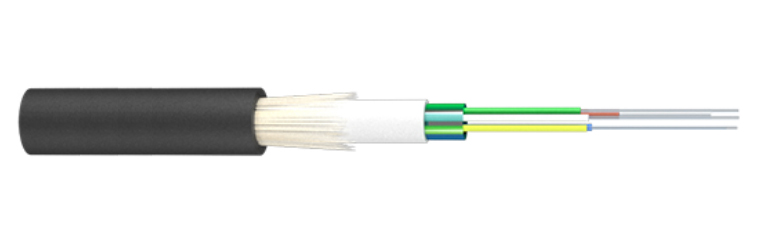

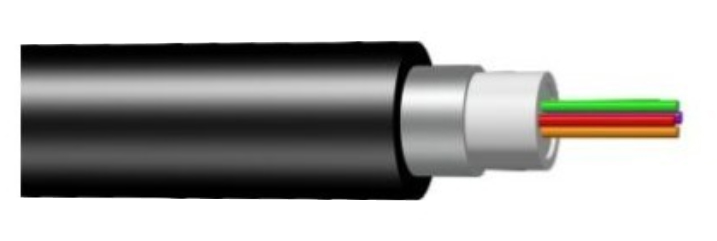

GYFXTF Glass Yarn All Dielectric Self-supporting Aerial Drop Cable has the structure that ( 250um optical fiber is sheathed in a loose tube made of high modulus material, and the loose tube is filed with waterproof compound.The loose tube is coated with a layer of glass fiber and extruded with a layer of PE (Polyethylene) sheath to complete the cable.
Features
Fiber counts: 2-24 fibers
Fiber Type: G652D; G657A1; G657A2; G657B3; G655C; OM1; OM2; OM3; OM4; OM5
Outer jacket: MDPE; HDPE;
Excellent mechanical and environmental performanceGood water resistance performance.
Gel-filled loose tube protect the fiber well.
Perfect lightning protection effect with all-dielectric materials
Small size and light weight, easy to install.
Application
All dielectric self-supporting aerial drop
Standard
In accordance with IEC,ITU and EIA standards

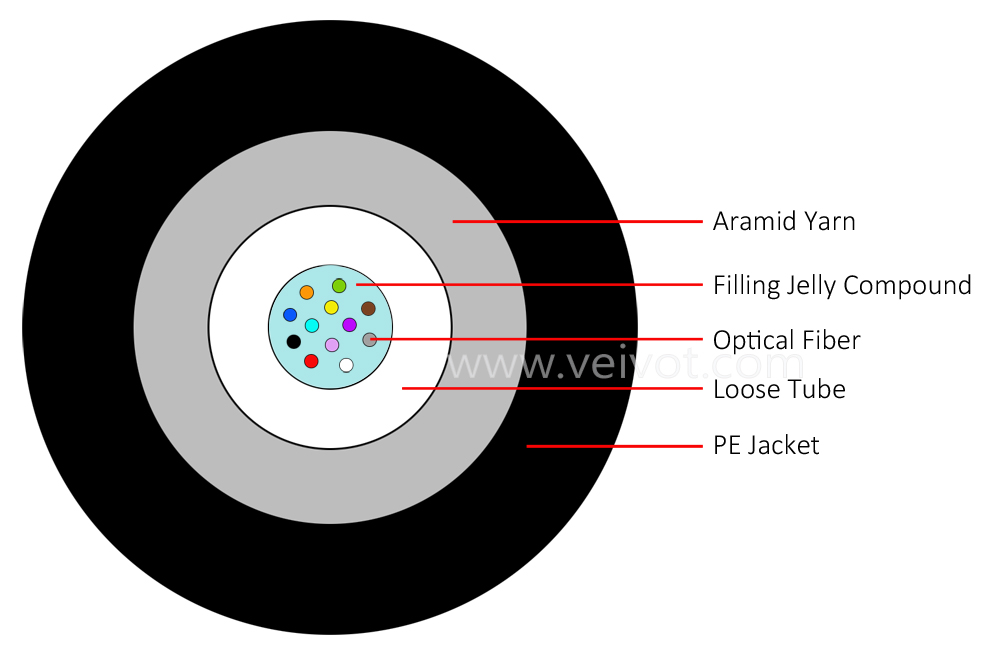

Structure parameters of optical cable
Item | Contents | Unit | Parameters | |
Optical fiber | Count | / | 2~12 | 14~24 |
Cable structure | / | / | Uni-tube | |
Loose tube | Material | / | PBT | |
Count | / | 1 | ||
Color | White | |||
Peripheral reinforcement | Material | / | Glass Yarn | |
Outer sheath | Material | / | PE | |
Color | / | Black | ||
Cable diameter | ±0.5 | mm | 6.0 | 6.8 |
Cable weight | ±10% | kg/km | 36 | 46 |
Mechanical & Environmental Performance
Item | Contents | Unit | Parameters |
Max. Tensile Strength | Short term | N | 1000 |
Long term | N | 300 | |
Max. Crush | Short term | N/100mm | 1000 |
Long term | N/100mm | 300 | |
Min. Bending Radius | Operation | mm | 10 times of cable diameter |
Installation | mm | 20 times of cable diameter | |
Applicable temperature range | Operation | ℃ | -40 ~ +70 |
Installation | ℃ | -20 ~ +60 | |
Storage & Shipping | ℃ | -40 ~ +70 |
