Description

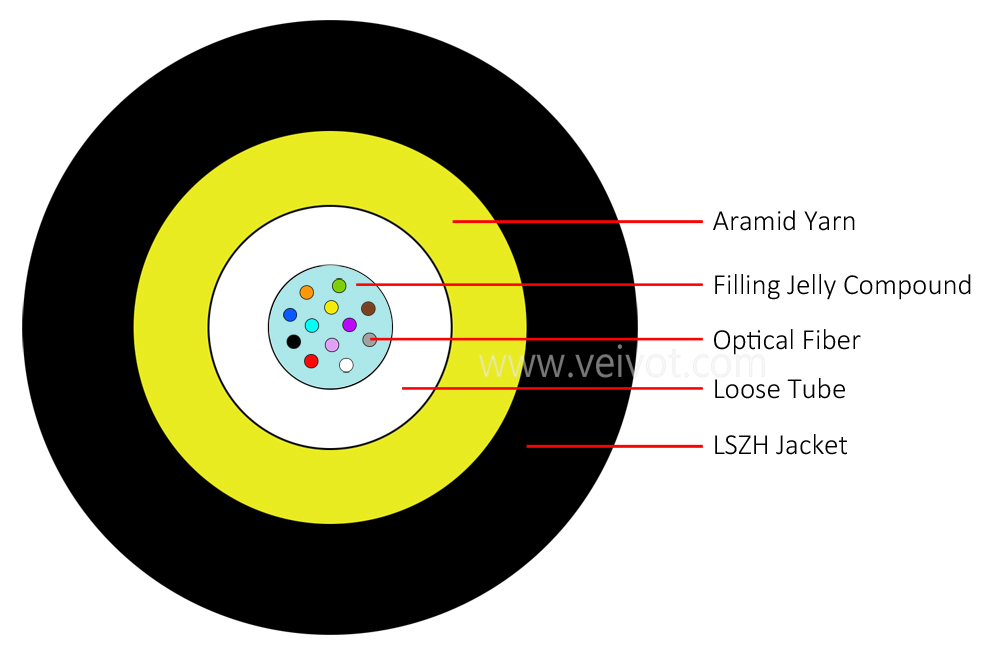

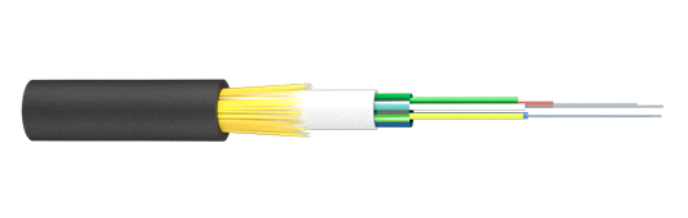

GJYFXTH_A Aramid Yarn All Dielectric Self-supporting Aerial Drop Cable has the structure that ( 250um optical fiber is sheathed in a loose tube made of high modulus material, and the loose tube is filed with waterproof compound.The loose tube is coated with a layer of aramid yarn and extruded with a layer of LSZH (Low Smoke, Zero Halogen, Flame Retardant) sheath to complete the cable.
Features
Fiber counts: 2-24 fibers
Fiber Type: G652D; G657A1; G657A2; G657B3; G655C; OM1; OM2; OM3; OM4; OM5
Outer jacket: LSZH
Excellent mechanical and environmental performancee.
Good water resistance performance.
Gel-filled loose tube protect the fiber well.
Perfect lightning protection effect with all-dielectric materials.
Small size and light weight, easy to install.
Application
All dielectric self-supporting aerial drop
Access Building from outdoor to indoor
Standard
In accordance with IEC,ITU and EIA standards
Structure parameters of optical cable
Item | Contents | Unit | Parameters | |
Optical Fiber | Count | / | 2~12 | 14~24 |
Cable Structure | / | / | Uni-tube | |
Loose Tube | Material | / | PBT | |
Count | / | 1 | ||
Color | White | |||
Strength Member | Material | / | Aramid Yarn | |
Outer Sheath | Material | / | LSZH | |
Color | / | Black | ||
Cable Diameter | ±0.5 | mm | 6.0 | 6.5 |
Cable Weight | ±10% | kg/km | 41 | 46 |
Mechanical & Environmental Performance
Item | Contents | Unit | Parameters | |
Optical Fiber | Count | / | 2~12 | 14~24 |
Max. Tensile Strength | Short term | N | 660 | 1320 |
Long term | N | 200 | 400 | |
Max. Crush | Short term | N/100mm | 1000 | |
Long term | N/100mm | 300 | ||
Min. Bending Radius | Operation | mm | 10 times of cable diameter | |
Installation | mm | 20 times of cable diameter | ||
Applicable Temperature Range | Operation | ℃ | -40 ~ +70 | |
Installation | ℃ | -20 ~ +60 | ||
Storage & Shipping | ℃ | -40 ~ +70 | ||
