Description

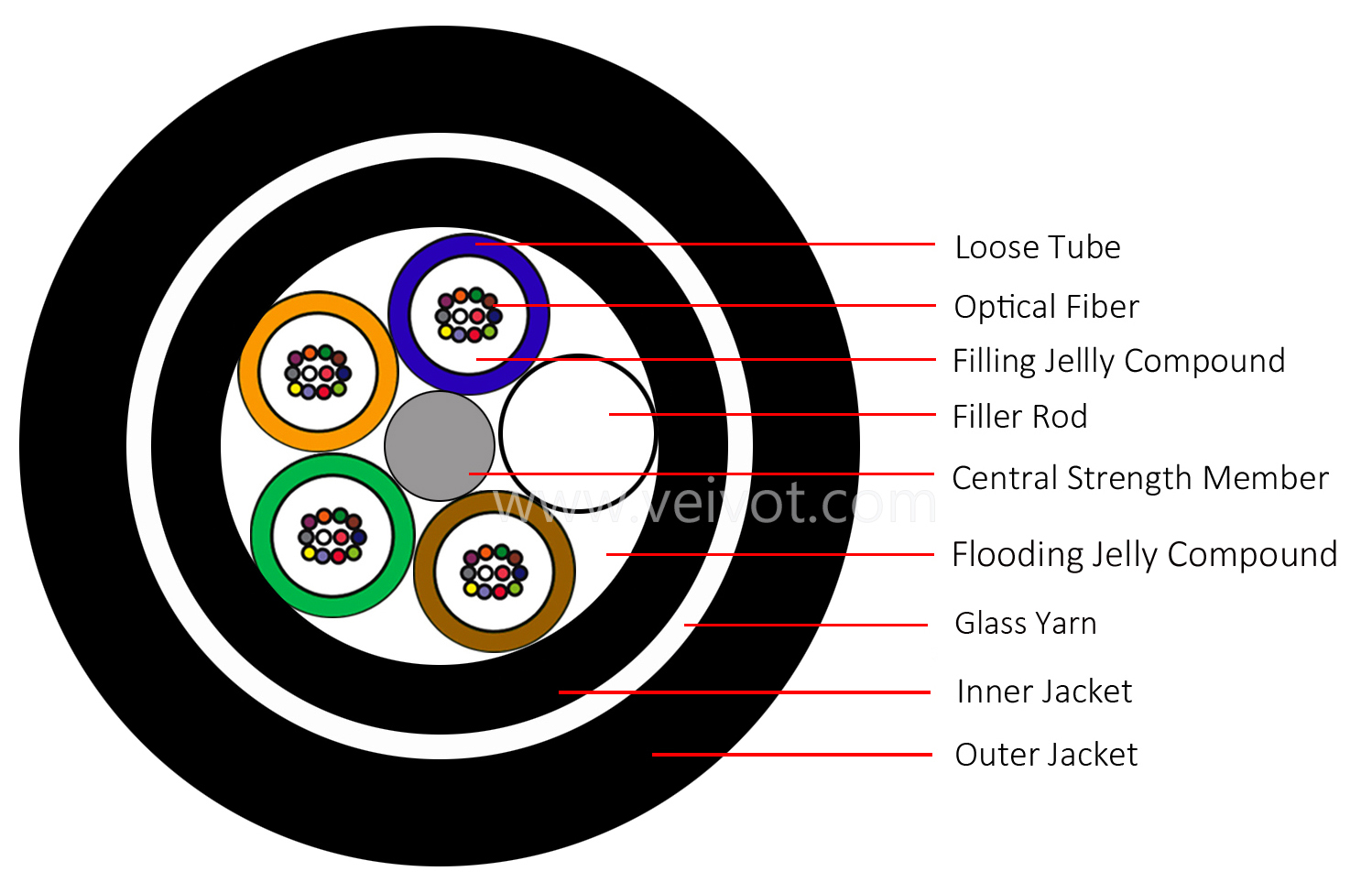

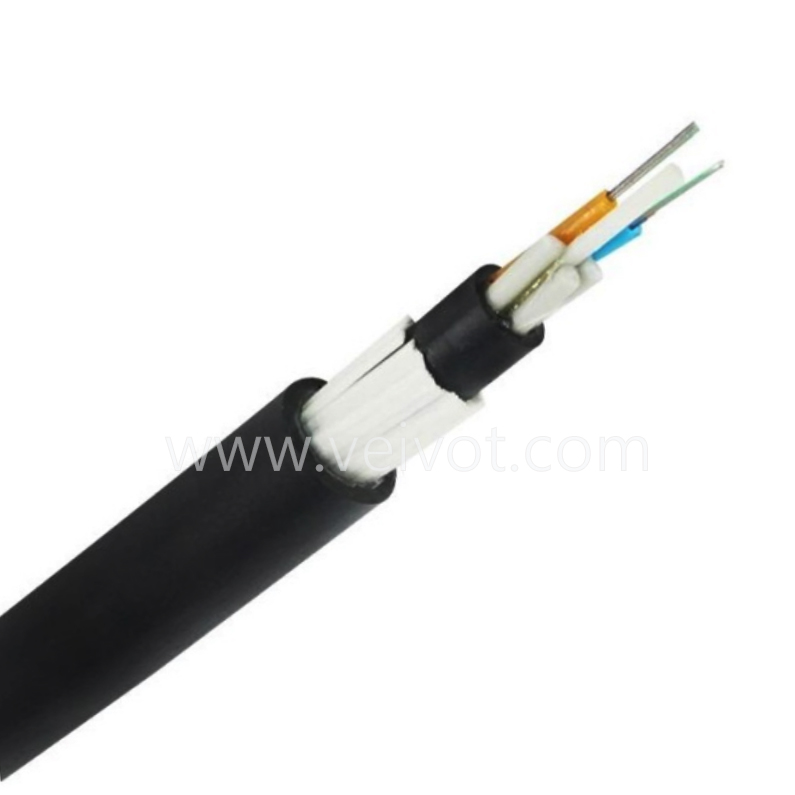

The structure of GYFTY63 fiber optic cable is to put 250μm of optical fiber into the PBT loose tube, filled with waterproof grease inside the loose tube. The center of the cable core is a non-metallic reinforced FRP (Fiber Reinforced Polymer), and the gaps are filled with waterproof grease. The loose tube (and filling rope) is twisted around the center to strengthen the core into a compact and circular cable core. A layer of polyethylene sheath material is extruded outside the cable core, and glass yarn is placed outside the sheath as a rodent proof material. Then, a layer of polyethylene (optional flame retardant) sheath material is extruded.

Features

• Fiber counts: 2-144 fibers

• Fiber Type: G652D; G657A1; G657A2; G657B3; G655C; OM1; OM2; OM3; OM4; OM5

• Outer jacket: MDPE; HDPE

• Excellent mechanical and temperature properties are guaranteed by precise excess fibers.

• The key protection of fiber is based on excellent hydrolysis resistance.

• It has excellent compression resistance and flexibility.

• Glass Yarn enhances anti-rodent performance

• It has good UV resistance, PE sheath, and easy installation.




Application

• Outdoor duct and overhead

Structure parameters of optical cable

Mechanical & Environmental Performance
