Description

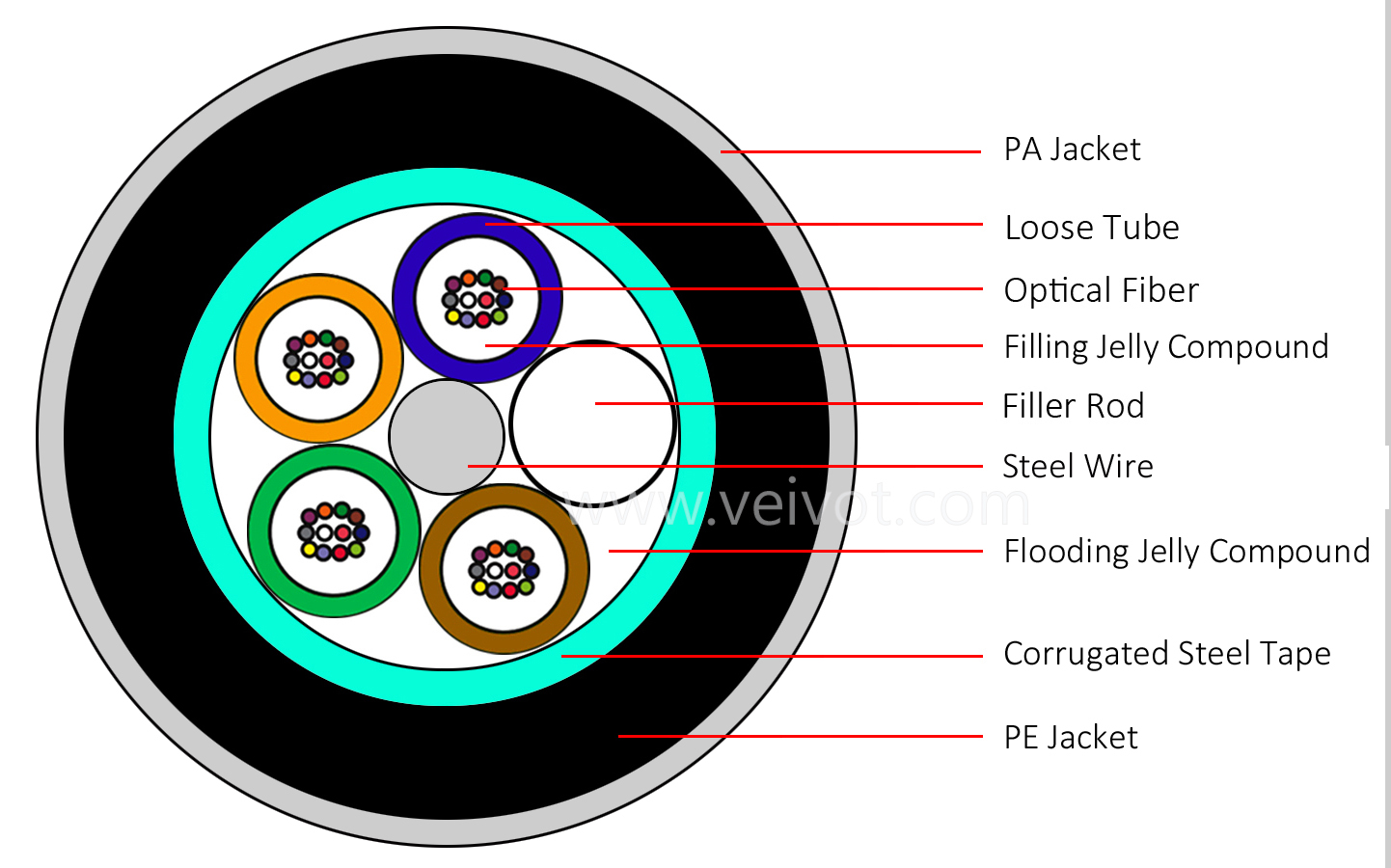

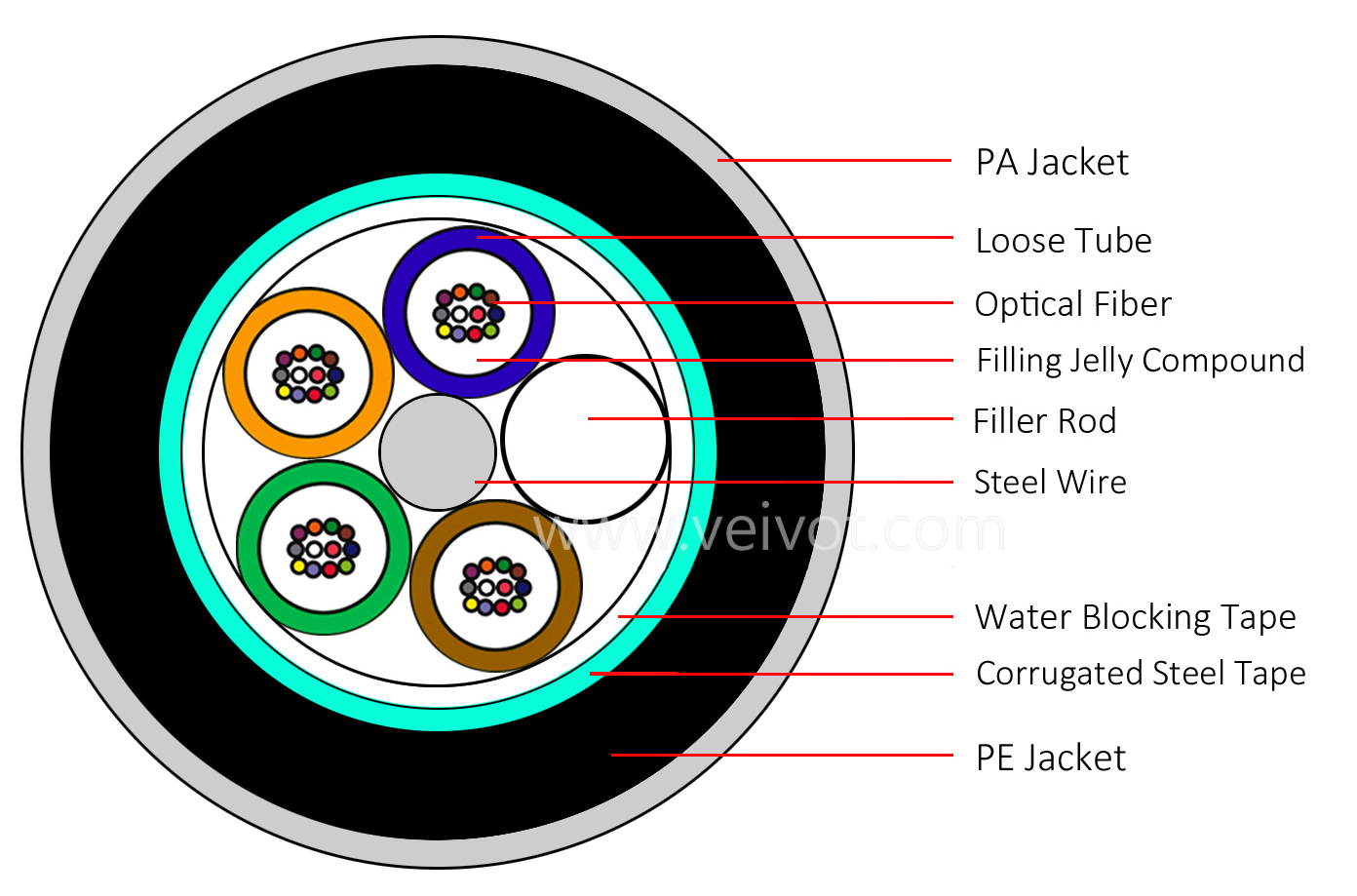

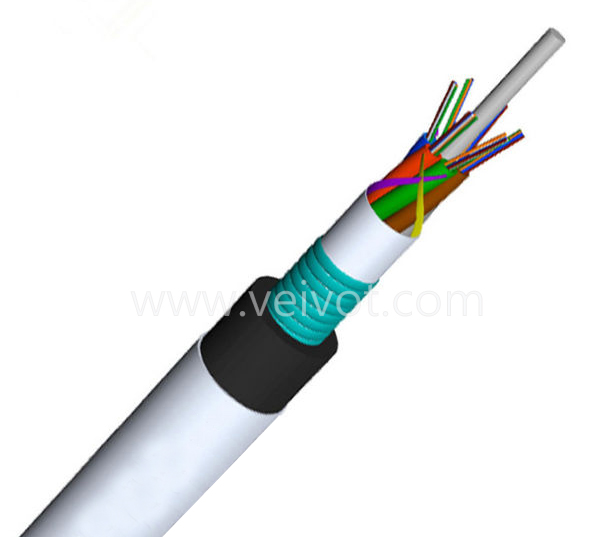

The structure of GYTS04 iber optic cable is to put 250μm of optical fiber into the PBT loose tube, filled with waterproof grease inside the loose tube. The center of the cable core is steel wire, and the gaps are filled with waterproof grease. The loose tubes (and fillers) are stranded around the central strength component to form a compact circular core, and the gaps inside the cable core are filled with waterproof fillers. A double-sided plastic coated steel strip (PSP) is longitudinally coated and wrapped with polyethylene sheath, then  wrapped with PA sheath to form the cable.

Features

• Fiber counts: 2-144 fibers

• Fiber Type: G652D; G657A1; G657A2; G657B3; G655C; OM1; OM2; OM3; OM4; OM5

• Outer jacket: PE+PA

• Excellent mechanical and temperature properties are guaranteed by precise excess fibers.

• The key protection of fiber is based on excellent hydrolysis resistance.

• It has excellent compression resistance and flexibility.

• PSP enhancing misture-proof performance.

• PA (Nylon) sheath has high strength, rigidity, good toughness, and wear resistance, making them excellent materials for rodent and termite resistance.




Application

• Outdoor duct, buried directly and overhead

Transmission performance

Structure parameters of optical cable

Mechanical & Environmental Performance
