Brand: VEIVOT
Fiber Optic Cable: GJPFJH
Fiber Type: SM or MM
Fiber Count: 24-144 cores
Application: indoor horizontal/vertical cabling
Description

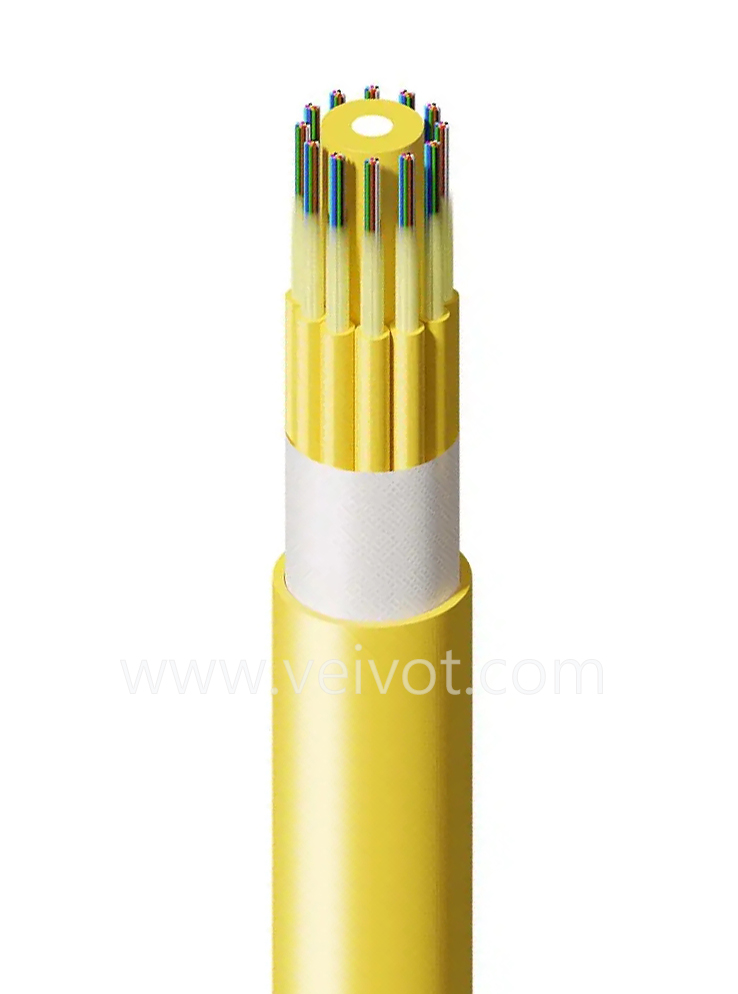

GJPFJH multi-purpose distribution indoor fiber optic cable use muti-fibre subunits (φ900um tight buffer fibre, aramid yarn as strength member). A Fibre Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. And finally extruded with PVC or LSZH (Low Smoke, Zero Halogen) sheaths to complete the cable.
Feature
Large number of cores, high density, can be divided into several independent optical units;
Flexible, excellent stress and strain properties;
Flame retardant outer sheath offering good protection;
All dielectric structure design, without electromagnetic induction effect.
In Accordance with IEC, ITU and EIA standards
Application
Horizontal and Vertical cabling inside buildings;
Multi-core patch cord;
As the transmission cables in transmission equipment.
Fiber Transmission Performance
Cabled Optical Fiber | SM: G.652 9/125um (1310nm/1550nm) | SM: G.657 9/125um (1310nm/1550nm) | MM: OM1 62.5/125µm (850nm/1300nm) | MM: OM2-OM5 50/125µm (850nm/1300nm) |
Max Attenuation (dB/km) | 0.4/0.3 | 0.4/0.3 | 3.5/1.5 | 3.5/1.5 |
Typical Value (dB/km) | 0.36/0.22 | 0.36/0.22 | 3.0/1.0 | 3.0/1.0 |

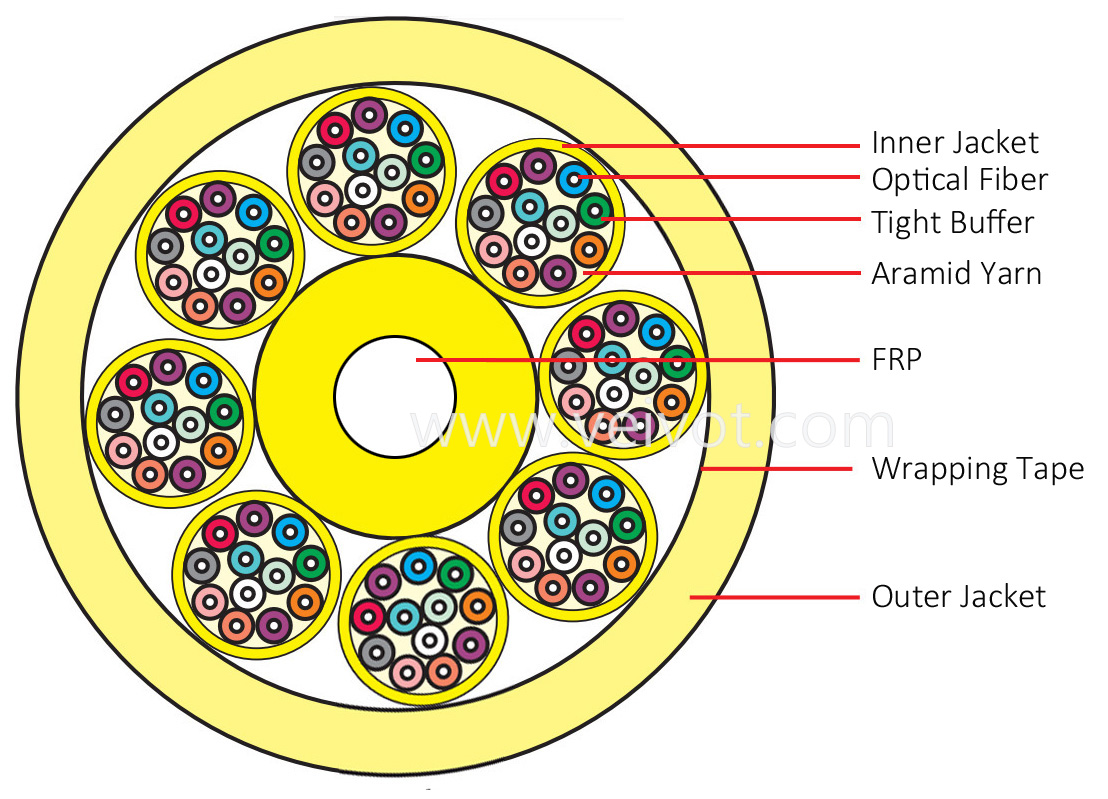

Structure parameters of optical cable
Optical Fiber | Counts | 24-144 | ||
Subunit | Optical Fiber | Counts | 6-12 | |
Type | G652D, G657A1, G657A2, G657B3, OM1, OM2, OM3, OM4, OM5 | |||
Tight Buffer | Material | PVC, LSZH, OFNR, OFNP | ||
Nominal Diameter | 0.9mm | |||
Color | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua | |||
Strength Member | Material | Aramid Yarn | ||
Central Strength Member | Material | FRP | ||
Inner/Outer Jacket | Material | PVC, LSZH, OFNR, OFNP | ||
Color | SM: Yellow OM1/OM2: Orange OM3: Aqua OM4: Aqua/Violet OM5: Lime Green Or as required. | |||
Technical Specification
Cable Type | Fiber counts | Cable diameter (mm) | Tensile Strength(N) | Crush Resistance(N/100mm) | Minimum Bend Radius(mm) | |||
Short term | Long term | Short term | Long term | Dynamic | Static | |||
GJPFJH | 24 | 13.8 | 1200 | 600 | 1200 | 600 | 20D | 10D |
36 | 16.8 | 1600 | 800 | 1200 | 600 | 20D | 10D | |
48 | 16.8 | 1600 | 800 | 1200 | 600 | 20D | 10D | |
72 | 19.9 | 2000 | 1000 | 1200 | 600 | 20D | 10D | |
96 | 23.2 | 3000 | 1700 | 1200 | 600 | 20D | 10D | |
144 | 26.5 | 3500 | 2000 | 1200 | 600 | 20D | 10D | |
Notes:
1.D denotes the diameter of the cable;
2.The above parameters are typical value;
3.The cable spec can be designed according to customer's requirement.
Temperature Performance
Transportation & Storage | Installation | Operation |
-20 ~ +70℃ | -10 ~ +50℃ | -20 ~ +60℃ |
