Brand: VEIVOT
Fiber Optic Cable: GJFH
Fiber Type: SM or MM
Fiber Count: 2-24 cores
Application: indoor horizontal cabling
Description

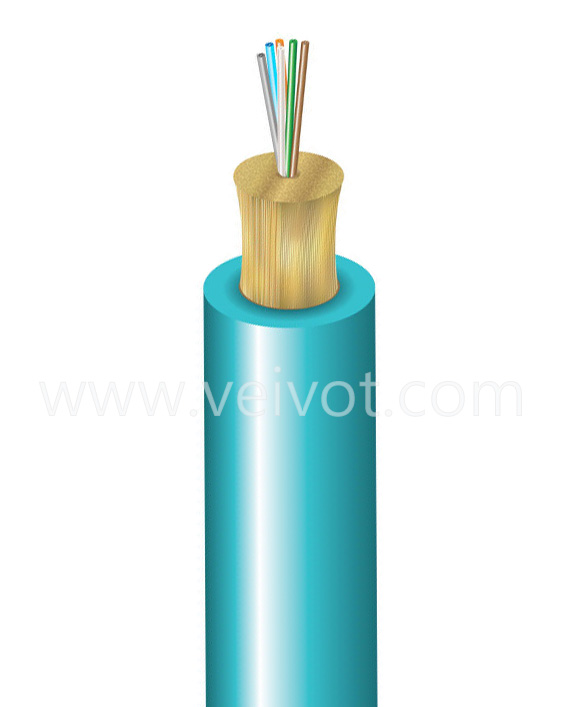

GJFH multi-core micro indoor fiber optic cable use multiple φ250um colored optical fibres as optical communication medium, the colored optical fibre wrapped with a layer of aramid yarn as strength member units, and the cable is completed witha PVC or LSZH(Low Smoke, Zero Halogen) jacket.
Feature
Extremely high fiber density, very small size,light weight and compact structure;
Suitable for large capacity data transmission;
Good flexibility, suitable for making patch cord;
High strength, good bending property, without gel inside, convenient for splicing and cabling;
Flame retardant outer sheath offering good protection;
In Accordance with IEC, ITU and EIA standards;
Application
Horizontal cabling inside buildings;
Multi-core patch cord;
Indoor cabling, as fan-out cable;
Fiber Transmission Performance
Cabled Optical Fiber | SM: G.652 9/125um (1310nm/1550nm) | SM: G.657 9/125um (1310nm/1550nm) | MM: OM1 62.5/125µm (850nm/1300nm) | MM: OM2-OM5 50/125µm (850nm/1300nm) |
Max Attenuation (dB/km) | 0.4/0.3 | 0.4/0.3 | 3.5/1.5 | 3.5/1.5 |
Typical Value (dB/km) | 0.36/0.22 | 0.36/0.22 | 3.0/1.0 | 3.0/1.0 |

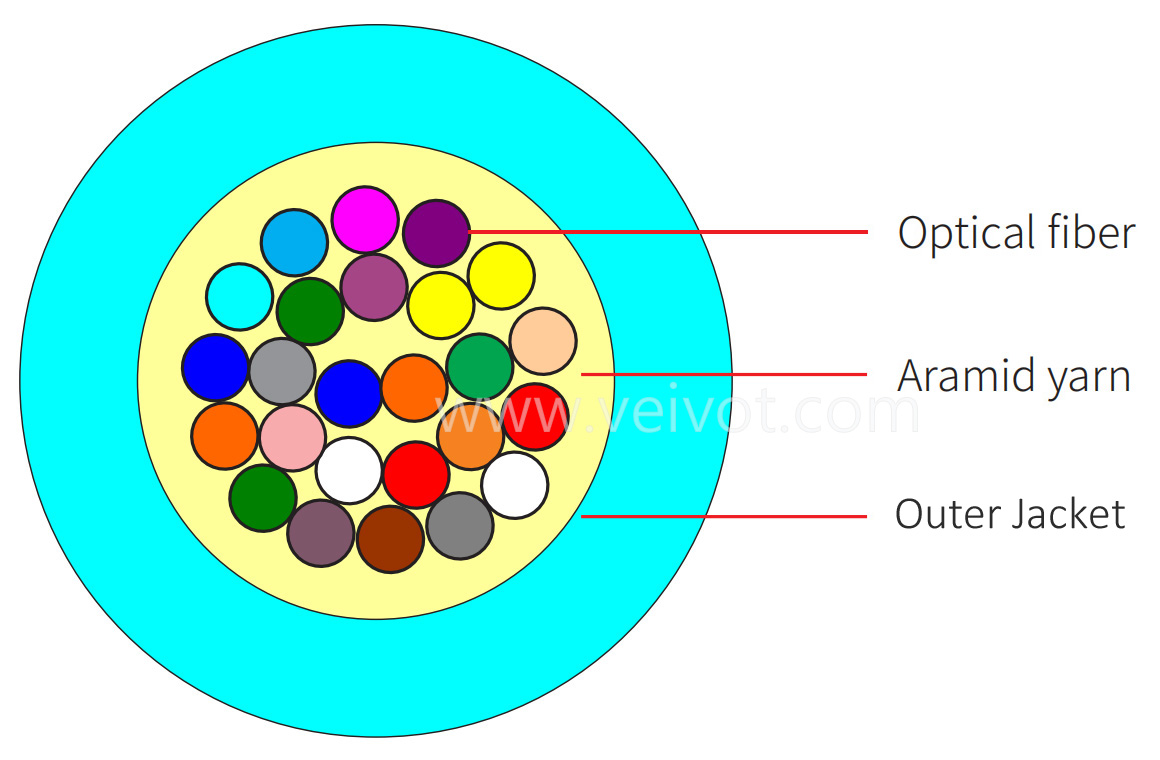

Structure parameters of optical cable
Optical Fiber | Count | 2-24 | |
Type | G652D, G657A1, G657A2, G657B3, OM1, OM2, OM3, OM4, OM5 | ||
Strength Member | Material | Aramid Yarn | |
Outer Jacket | Material | PVC, LSZH, OFNR, OFNP | |
Color | SM: Yellow OM1/OM2: Orange OM3: Aqua OM4: Aqua/Violet OM5: Lime Green Or as required. | ||
Technical Specification
Cabletype | Fiber counts | Cable diameter (mm) | Tensile Strength(N) | Crush Resistance(N/100mm) | Minimum bend radius(mm) | |||
Short term | Long term | Short term | Long term | Dynamic | Static | |||
GJFH | 2 | 3.0 | 200 | 100 | 500 | 250 | 20D | 10D |
4 | 3.0 | 200 | 100 | 500 | 250 | 20D | 10D | |
6 | 3.0 | 250 | 100 | 500 | 250 | 20D | 10D | |
8 | 3.0 | 200 | 100 | 500 | 250 | 20D | 10D | |
12 | 3.0 | 200 | 100 | 500 | 250 | 20D | 10D | |
16 | 3.0 | 200 | 100 | 500 | 250 | 20D | 10D | |
24 | 3.5 | 200 | 100 | 500 | 250 | 20D | 10D | |
Notes:
1.D denotes the diameter of the cable;
2.The above parameters are typical value;
3.The cable spec can be designed according to customer's requirement.
Temperature Performance
Transportation & Storage | Installation | Operation |
-20 ~ +70℃ | -10 ~ +50℃ | -20 ~ +60℃ |
