Fiber Optic Cable: GJDFH
Fiber Type: SM or MM
Fiber Count: 4-12 cores
Description

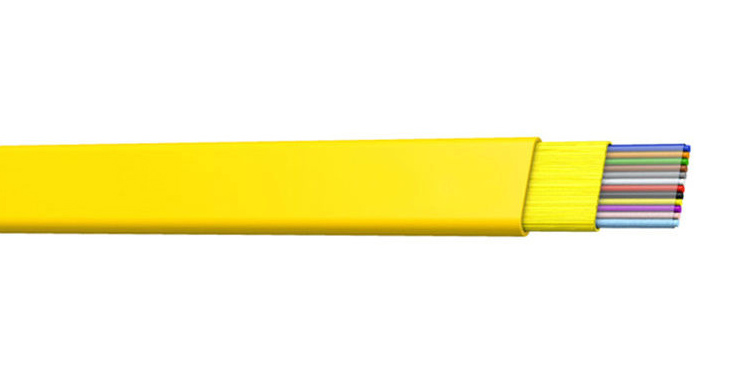

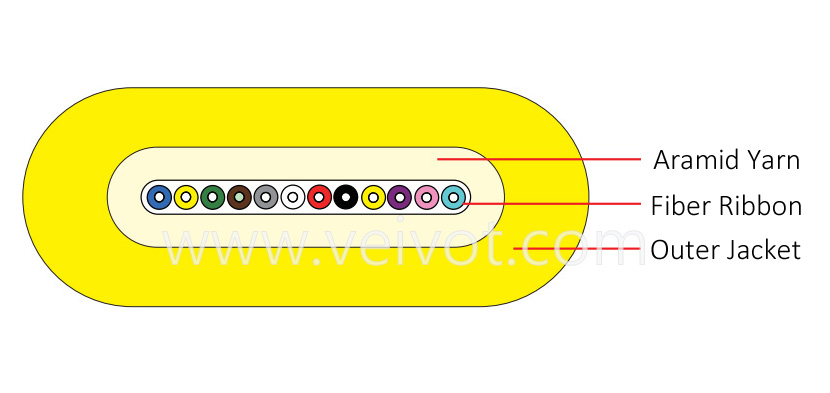

GJDFH Ribbon fibre Flat cable use fibre ribbon as optical communication medium.Then wrapped with a layer of aramid yarn as strength member units, and the cable is completed with LSZH(Low Smoke, Zero Halogen) jacket.
Feature
High-integrated fibre ribbon design.
Aramid yarn as strength member making cable have excellent tensile strength performance.
Flame retardant outer sheath offering good protection;
In Accordance with IEC, ITU and EIA standards;
Application
lndoor cable distribution.
lnterconnect between instruments, communication equipments.
Ribbon optical fibre jumper and pigtail.
Fiber Transmission Performance
Cabled Optical Fiber | SM: G.652 9/125um (1310nm/1550nm) | SM: G.657 9/125um (1310nm/1550nm) | MM: OM1 62.5/125µm (850nm/1300nm) | MM: OM2-OM5 50/125µm (850nm/1300nm) |
Max Attenuation (dB/km) | 0.4/0.3 | 0.4/0.3 | 3.5/1.5 | 3.5/1.5 |
Typical Value (dB/km) | 0.36/0.22 | 0.36/0.22 | 3.0/1.0 | 3.0/1.0 |
Structure parameters of optical cable
Optical Fiber | Count | 4-12 | |
Type | G652D, G657A1, G657A2, G657B3, OM1, OM2, OM3, OM4, OM5 | ||
Strength Member | Material | Aramid Yarn | |
Outer Jacket | Material | PVC, LSZH, OFNR, OFNP | |
Color | SM: Yellow OM1/OM2: Orange OM3: Aqua OM4: Aqua/Violet OM5: Lime Green Or as required. | ||
Technical Specification
Cable Type | Fiber counts | Cable diameter (mm) | Tensile Strength(N) | Crush Resistance(N/100mm) | Minimum bend radius(mm) | |||
Short term | Long term | Short term | Long term | Dynamic | Static | |||
GJDFH | 4 | (3.7±0.3)*(2.3±0.3) | 150 | 80 | 1000 | 300 | 20D | 10D |
6 | (4.2±0.3)*(2.3±0.3) | 150 | 80 | 1000 | 300 | 20D | 10D | |
12 | (4.8±0.3)*(2.3±0.3) | 150 | 80 | 1000 | 300 | 20D | 10D | |
Notes:
1.D denotes the diameter of the cable;
2.The above parameters are typical value;
3.The cable spec can be designed according to customer's requirement.
