Description:

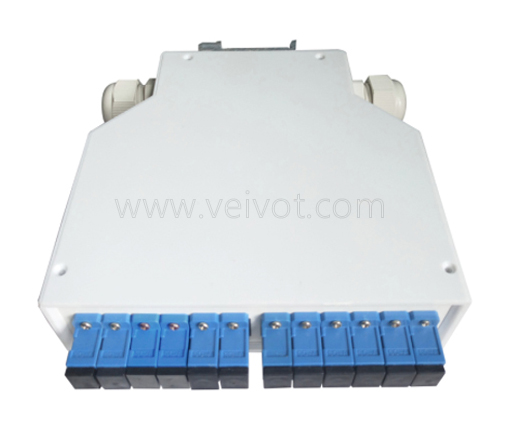

The VV-PP-DIN-PL series DlN Rail fiber optic patch panel is designed to provide a smaller footprint for fiber optic wiring and splicing applications that require wall or DIN rail installation.

There is a fiber optic adapter board on the distribution frame that can be used for ST, SC, FC, LC, and MTRJ single-mode or multi-mode (0M1, 0M2, 0M3, and OM4) fiber optic adapters. The adapter board and fiber optic tail can be ordered separately or bundled with the patch panel through our configurator.

The housing of the VV-PP-DIN-PL series DlN Rail fiber optic cable is made of plastic (ABS+PC), with a compact design that provides a more cost-effective solution at a lower deployment cost. The fibers in the fiber optic cable can be neatly stored in space limited locations, ensuring their safety. When the fiber optic patch panel is fully charged, it can support up to 24 fibers.

Feature:

• Reasonable design, plastic case, light weight

• Electrostatic powder painting, grey or black color

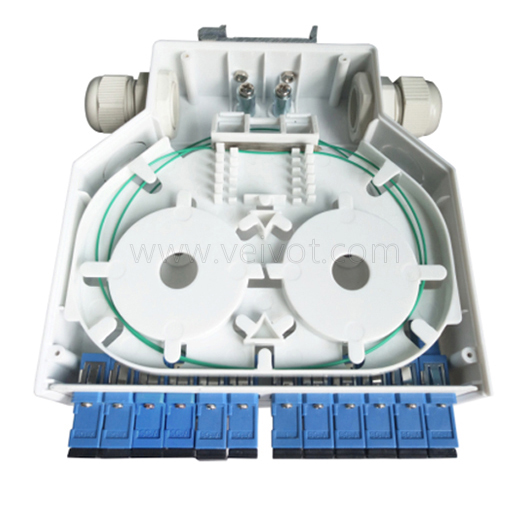

• Plastic blue splice tray, rotatable design, compact structure

• Two cable entry lines allow for simultaneous splicing or termination of two cables within the same panel

• Two rear entries (PG 11 cable gland)

• IP20 protection

• Max. 24 fibers capacity

• SC,LC,ST,FC ... different adapter port available

• DIN Rail mounted application

• -40°C to +80°C operating temperature

Specification:

Accessories:

Order information:
