Description

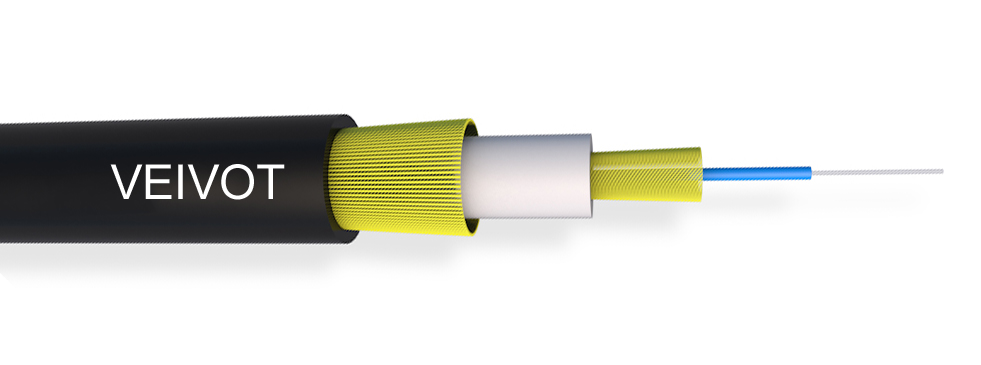

The 1F 4.5mm SM FTTH drop cable double sheathed PE high-strength cable uses a inner cable with an OD3.0mm as the optical communication medium. The inner cable is wrapped with a layer of aramid yarn as the strength component unit, finally the LSZH sheath is extruded over it.
Features
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Simple structure, light weight and high practicability
Fully dielectric cable
Application
Last cable in FTTX project
LAN and FTTX networks
Distribution network
ODF connections
Inside house OLT connection

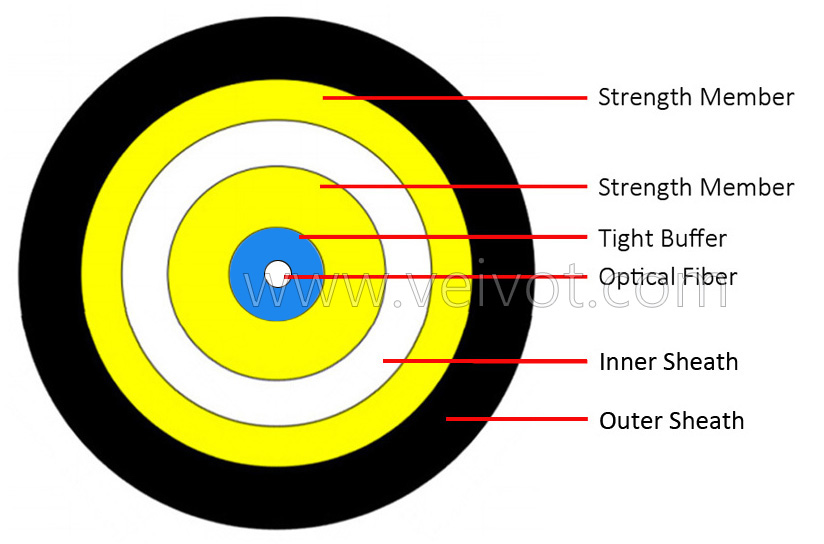

Technical parameters of optical cable
Item | Contents | Unit | Value |
Optical Fiber | Count | / | 1 |
Type | / | G657A2 / G657B3 | |
Color | / | Nature | |
Tight Buffer | Diameter ±0.05 | mm | 0.9 |
Material | / | LSZH | |
Color | / | Blue | |
Inner Sheath | Diameter ±0.2 | mm | 3.0 |
Material | / | LSZH | |
Color | / | White | |
Strength Member | / | Aramid Yarn | |
Outer Sheath | Diameter ±0.3 | mm | 4.5 |
Material | / | LSZH | |
Color | / | Black | |
Strength Member | / | Glass Yarn | |
Cable weight (Approx.) | kg/km | 20 | |
Tensile Load | Short Term | N | 600 |
Long Term | 250 | ||
Crush Resistance | Short Term | N/100mm | 500 |
Long Term | 200 | ||
Min. Cable Bending Radius | Dynamic | mm | 20D |
Static | mm | 10D | |
Temperature Range | Installation | ℃ | -20~ +60 |
Operation | ℃ | -40 ~ +70 | |
Storage & Transport | ℃ | -40 ~ +70 | |
