Description:

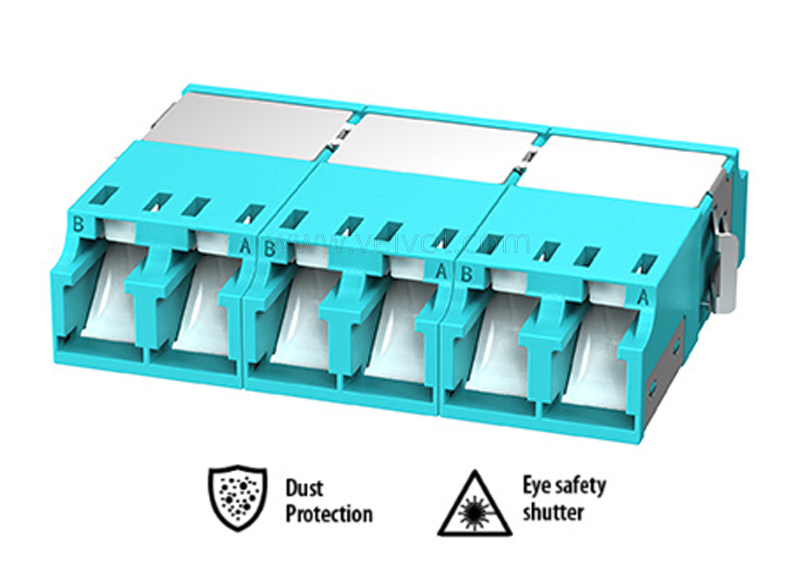

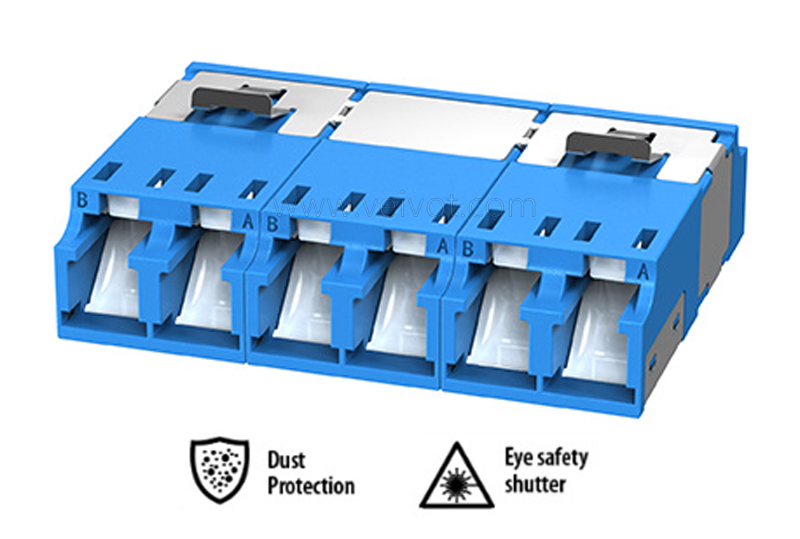

Veivot LC Internal Shutter 6 Ports Adapter with our uniquely designed internal shutter, features automatic open and close operation without contacting the retaining ring. The internal shutter provides maximum protection from lasers, dust and other contaminants.
Features:
Panel clip for easy installation
High temperature stability
High precision alignment
Good interchangeability
Low Insertion Loss
Good Repeatability
Good durability
Compact design
Application:
Fiber Optic Telecommunications
LAN (Local Area Network)
FTTH (Fiber To The Home)
CATV&CCTV System
Hih speed transmission systems
Fiber optic sensing
Industtial, Mechanical and Military
Specification:
Insertion loss | ≤0.2dB |
Durability | Delta IL≤0.2dB @ 500 cycles |
Withdrawal force from sleeve | 1-2.5N |
Sleeve material | Ceramics |
Working wavelength | 1310nm,1550nm |
Operating temperature | -40℃~+85℃ |
Storage temperature | -40℃~+85℃ |
Standards | IEC61754-20-2012 / IEC613000 |
Environmental and Mechanism:
Properties | Test Condition | Conformance | Test Result |
Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
Mating Durability | 500 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
Impact | 1.5m, 8 drops | IEC61300-2-12 | ≤0.2dB |
Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-6 | ≤0.2dB |
Temperature Cycling | 40ºC to +85ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
Temperature humidty cycling | 40ºC, 95%RH, 96Hr | IEC61300-2-21 | ≤0.2dB |
Operating Temperature | -40ºC to +85ºC | ≤0.2dB | |
Storage Temperature | -40ºC to +85ºC | ≤0.2dB |
