Description:

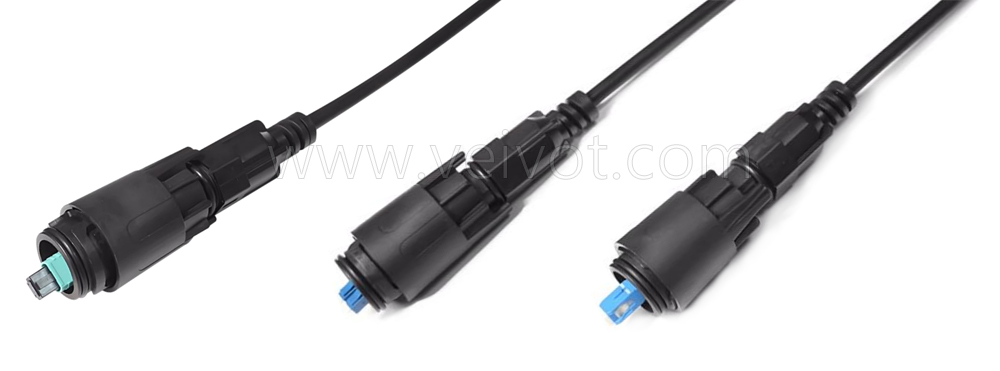

IPFX is an outdoor connector designed to provide IP-67 waterproof and dustproof seals for IPFX-LC duplex, MTP/MPO and other connector types. The IPFX MPO/MTP/LC/SC waterproof wiring is 100% compatible with FullAXS connectors and can be easily installed on the panel using the adapter. When the connector and socket are paired or dust caps are installed, the design of this system can provide IP67 dust and water protection. The IPFX-LC component is particularly suitable for WiMax, LTE, wireless, wireless backhaul and base station applications.

Features:

• Factory terminated (tested cables) or Field installable version available .

• Low insertion loss and added loss.

• Height of attenuation.

• IP68 water, dust proof and corrosion resistant

• Plug has tolerance free design, free floating on Z-axis.

• The material in the jumpel cable are all-weather and UV-resistant.

• Mechanical performance: IEC 61754-7 standard.

• RoHS and REACH materials compliant.

• 100% Compatible with FullAXS Connectors and has site tehnical features.

Application:

• Multi-purpose Outdoor

• For connection between distribution box and RRH

• Deployment in Remote Radio Head cell tower applications

Technical Data:
