VEIVOT provides full series of Thermal/Athermal AWG products, including 50GHz, 75GHz, 100GHz, 150GHz, 200GHz Thermal/Athermal AWG. Here, we introduced the 40-96 channel 50GHz Athermal AWG MUX/DEMUX component for DWDM systems.
Description:
VEIVOT provides full series of Thermal/Athermal AWG products, including 50GHz, 75GHz, 100GHz, 150GHz, 200GHz Thermal/Athermal AWG. Here, we introduced the 40-96 channel 50GHz Athermal AWG MUX/DEMUX component for DWDM systems.

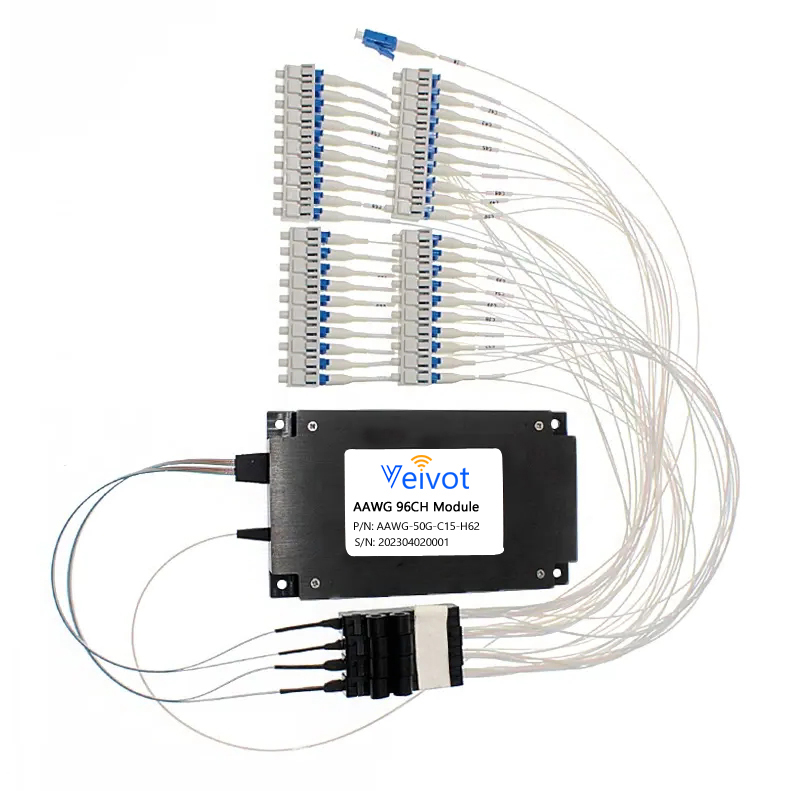

96 channel DWDM MUX DEMUX is a high -density, low loss and independent passive DWDM device for high -capacity terminal DWDM solutions, allowing up to 96 wavelengths to a pair of fiber. Using high-quality AAWG technology, all 96 channels are expanded on the C-band of each ITU-T 50GHz (0.4nm) interval between channels between channels. It is very suitable for transmitting PDH, SDH/SONET, and Ethernet in the edge of the Light City and accessing networks.

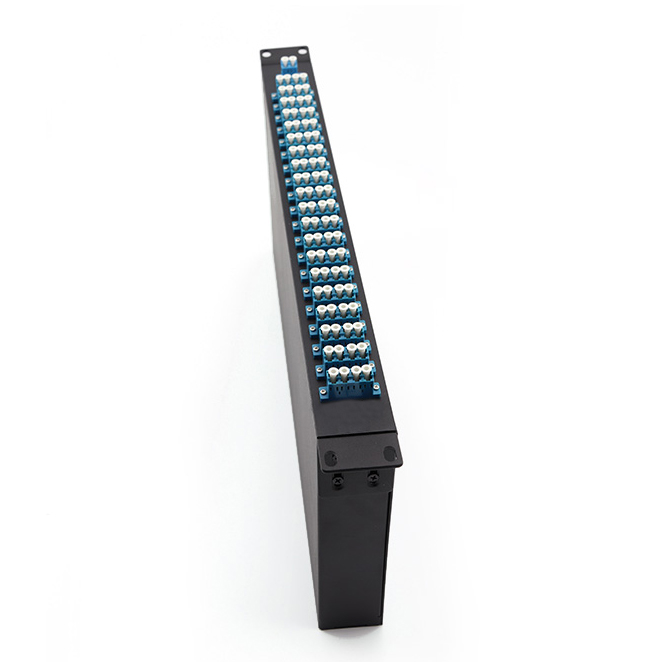

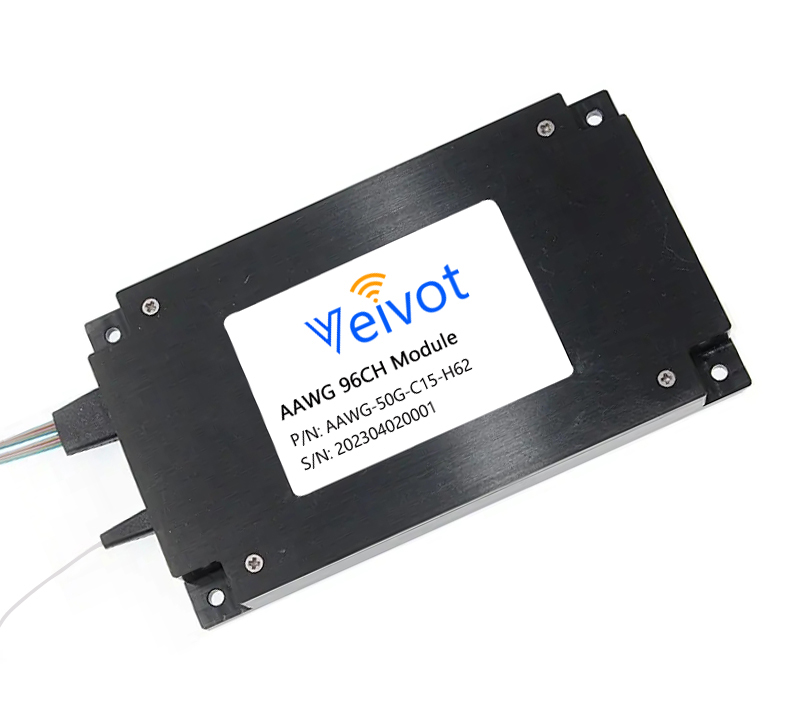

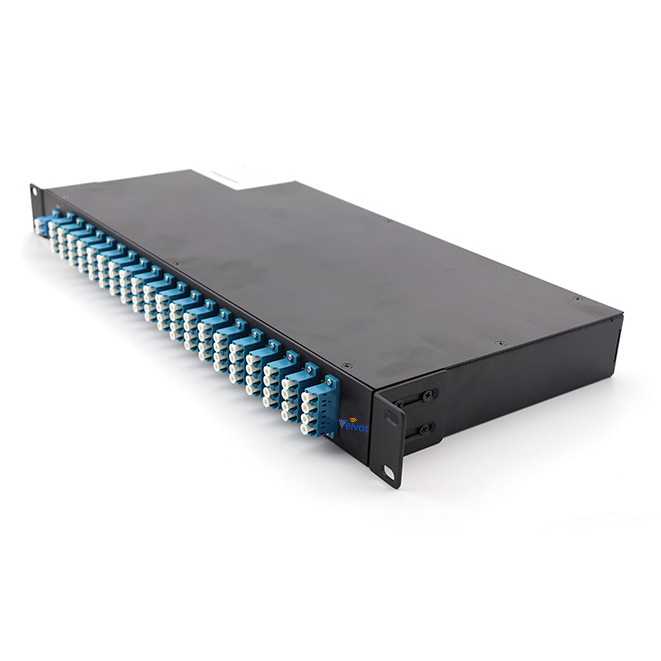

VEIVOT can provide different packages for different products, including compact box packaging and 19-inch 1U rack installation.
Features
Low Insertion Loss
Low PDL
Low chromatic dispersion
Established silica-on-silicon
Telcordia GR-1221-CORE qualified
Applications
DWDM transmission Metro Area
Networks Long Haul Networks Building
Optical add/drop multiplexing
Specifications
Items | Specification | Cmment |
Channel spacing | ITU 50GHz | |
Channel numbers | 96CH | 40~96CH available |
Reference Passband | ±0.05nm | |
1dB Bandwidth (nm) | >0.18 | Gaussion Type |
3dB Bandwidth (nm) | >0.28 | |
Insertion Loss (including connector loss) | <7dB | Worst case in ITU passband |
Uniformity (dB) | <1.5 | |
Ripple (dB) | <0.7 | Loss variation in ITU passband |
Adjacent Channel Isolation (dB) | >22 | Worst case in ITU passband |
Non-Adjacent Channel Isolation (dB) | >27 | Worst case in ITU passband |
Total Crosstalk (dB) | >20 | Cumulative crosstalk of all other channels |
PDL (dB) | <0.5 | Max. value in ITU passband |
Return Loss (dB) | >40 | |
CD (ps/nm) | -35～+35 | |
PMD (ps) | <0.5 | |
Continuous Optical Power (mW) | <250 | Maximum input optical power |
Chromatic Dispersion(CD) (ps/nm) | -20 ~ +20 | |
Operating Temperature (℃) | -5～65 | |
Storage Temperature (℃) | -40～85 | |
Relative Humidity | 0~95% | |
Fiber Type | SMF-28e | |
Connector | LC/UPC | |
Packaging Dimension(mm) | 120x75x12.7mm or Rack Mount |
1. IL Represents the worst case over a +/-0.01nm window around the ITU wavelength:
2. PDL was measured on average polarization over a +/- 0.01nm window around the ITU wavelength.
3. The above specification is without connector.
4. IL is 0.3 dB higher and RL is 5 dB lower for each connector and adapter added.

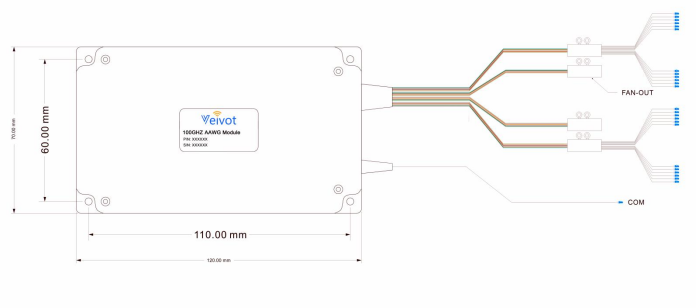

Module Drawing
Order informaton
Filter Mode | Channel Spacing | Channel Number | First Channel | Pigtails Diameter | Fiber Length | Package Type | Connector Type |
G=Gaussian | 50=50GHz | 32=32 Channels 80=80 Channels 96=96 Channels | 645:196.45THz | 250=250μm 900=900μm XX=Others
| 0.5M=0.5M | M=Module | LU=LC/UPC FU=FC/UPC |
