150GHz 32CH AAWG module AAWG series products use silicon technology on silicon level technology, which has high performance and reliability and can be used for general DWDM systems. Based on non -heat design and packaging, it is a completely passive product without any power and temperature control.
Description:
150GHz 32CH AAWG module AAWG series products use silicon technology on silicon level technology, which has high performance and reliability and can be used for general DWDM systems. Based on non -heat design and packaging, it is a completely passive product without any power and temperature control. For 150GHz AAWG MUX/DEMUX, a single chipset supports up to 32CH based on a single chipset. Custom wavelength, packaging and packaging
Optical fiber options.

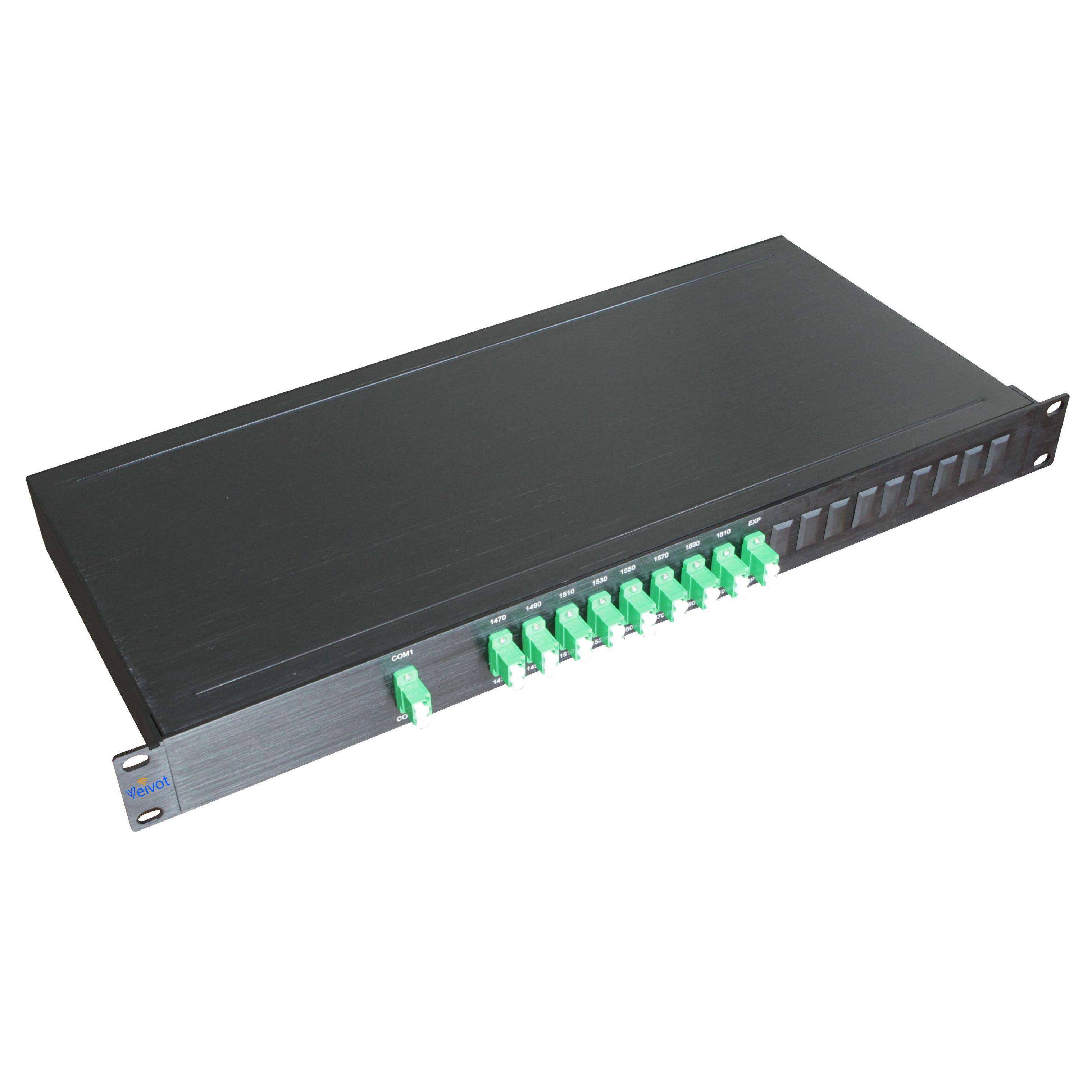

VEIVOT can provide different packages for different products, including compact box packaging and 19-inch 1U rack installation.
Features
Low Insertion Loss
Low PDL
Low chromatic dispersion
Established silica-on-silicon
Telcordia GR-1221-CORE qualified
Applications
DWDM transmission Metro Area
Networks Long Haul Networks Building
Optical add/drop multiplexing
Specifications
Parameter | Specification | Units | Notes | ||
Min | Type | Max | |||
Channel Spacing | 150 | GHz | |||
Nos of Channel | 32 | Ch | |||
Channel Frequencies | ITU Grid | THz | |||
Available Channel Frequency Range | 191.70 | 196.40 | THz | ||
Channel Passband | -60 | +60 | GHz | ||
-0.48 | +0.48 | nm | |||
Center Wavelength Accuracy | -0.05 | +0.05 | nm | ||
-6.25 | +6.25 | GHz | |||
Insertion Loss | 5.5 | dB | @Center Wavelength | ||
6.0 | dB | Full Bandwidth | |||
Insertion Loss of monitor port | 16 | 23 | @Demux | ||
20 | 27 | @Mux | |||
Passband Ripple | 0.6 | nm | Full Bandwidth | ||
Bandwidth @1.5dB | 135 | GHz | |||
Bandwidth @3.0dB | 160 | GHz | |||
Bandwidth @20dB | 310 | GHz | |||
Insertion Loss Uniformity at ITU | 1.50 | dB | |||
Polarization Dependent Loss | 0.5 | dB | |||
Adjacent Channel Isolation | 13 | 15 | dB | ||
Non-Adjacent Channel Isolation | 30 | 35 | dB | ||
Total Cross Talk | 11 | 13 | dB | ||
Directivity | 50 | dB | |||
Return Loss with connectors | 40 | 45 | dB | ||
Chromatic Dispersion | -20 | +20 | ps/nm | ||
PMD | 0.5 | ps | |||
Optical Power Handling of Common Port | 24 | dBm |
Notes: Insertion Loss tested without connector

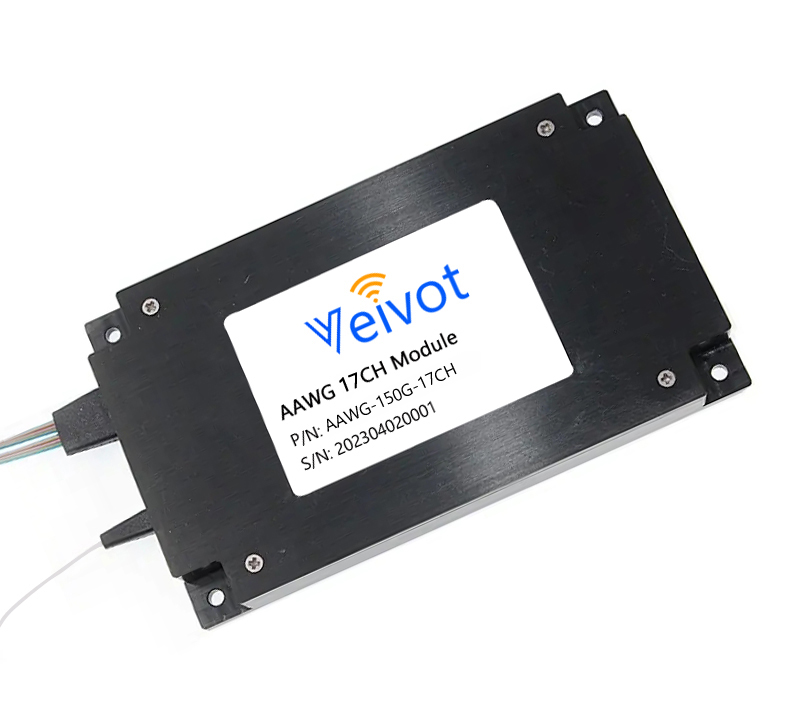

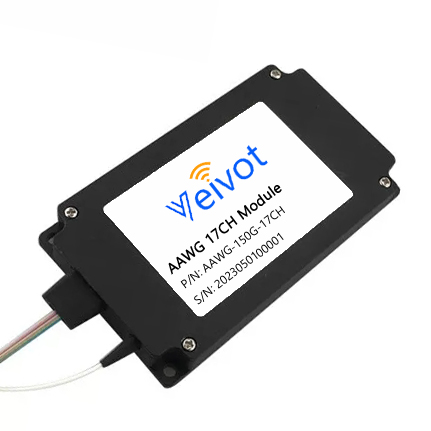

Module Drawing
Order informaton
Filter Mode | Channel Spacing | Channel Number | Pigtails Diameter | Fiber Length | Package Type | Connector Type |
F=Flat-top | 150=150GHz | 32=32 Channels | 250=250μm 900=900μm XX=Others
| 0.5M=0.5M | M=Module | LU=LC/UPC FU=FC/UPC |
